EP9307-IRZ
IC MPU EP9 200MHZ 272TFBGAManufacturer: Cirrus Logic Inc.
Categories: Microprocessors
Quality Control: Learn More
Cirrus Logic Inc. EP9 series microprocessor, part number EP9307-IRZ. This 32-bit ARM920T core processor operates at 200MHz and features a single core architecture. It is equipped with a MaverickCrunch™ math engine for accelerated operations. Connectivity options include AC'97, I2S, IrDA, SPI, and UART interfaces, alongside three USB 2.0 ports and a 1/10/100Mbps Ethernet port. The device integrates display and interface controllers for Keypad, LCD, and Touchscreen functionality, and includes graphics acceleration. Memory support extends to SDRAM. This surface mount component comes in a 272-LFBGA package. Operating temperature range is -40°C to 85°C (TA). The EP9307-IRZ is utilized in various applications, including consumer electronics and industrial control systems, and features hardware for security identification.
Additional Information
Series: EP9RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 272-LFBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Core Processor | ARM920T |
| Voltage - I/O | 1.8V, 3.3V |
| Ethernet | 1/10/100Mbps (1) |
| USB | USB 2.0 (3) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Math Engine; MaverickCrunch™ |
| RAM Controllers | SDRAM |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD, Touchscreen |
| Security Features | Hardware ID |
| SATA | - |
| Additional Interfaces | AC'97, I2S, IrDA, SPI, UART |
Request a Quote
Clients Also Buy

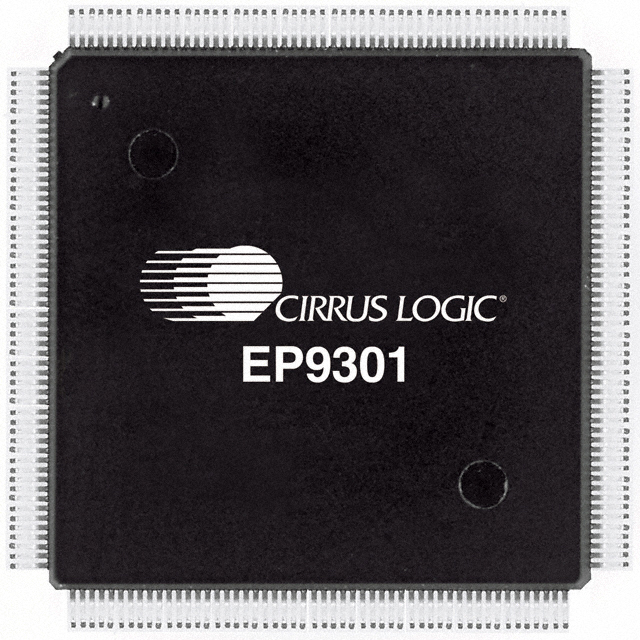

EP9301-CQZR
IC MPU EP9 166MHZ 208LQFP

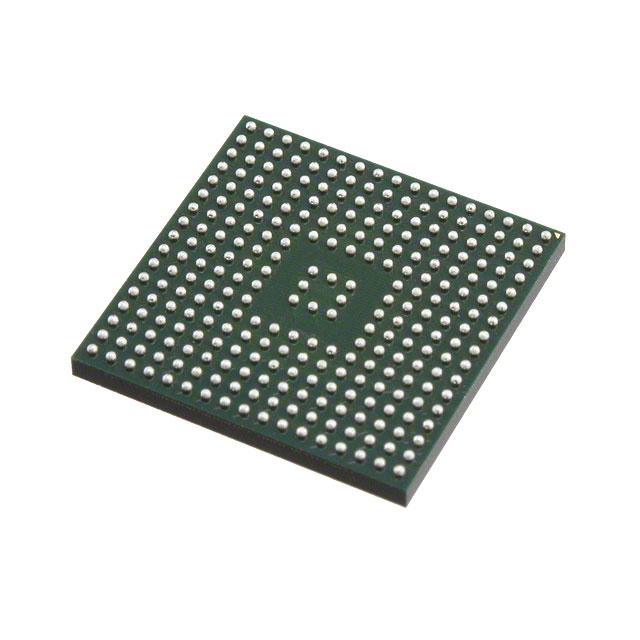

EP9307-CRZR
