WM8988LGECN/V
IC CODEC STER HDPH DRIVER 28QFNManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
Cirrus Logic Inc. WM8988LGECN-V is a highly integrated stereo audio CODEC designed for demanding audio applications. This 24-bit device features two stereo DAC channels and two stereo ADC channels, supporting a Sigma-Delta architecture for superior audio performance. The WM8988LGECN-V offers a typical SNR of 93 dB for ADCs and 100 dB for DACs, ensuring exceptional audio fidelity. It includes a dedicated headphone driver capable of delivering high output power. The device operates with analog supply voltages ranging from 1.8V to 3.6V and digital supply voltages from 1.42V to 3.6V. The WM8988LGECN-V is supplied in a compact 28-QFN (4x4) package, suitable for surface mounting. This component finds broad application in consumer electronics, personal audio devices, and communication systems where high-quality audio processing is essential.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-UFQFN |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V ~ 3.6V |
| Voltage - Supply, Digital | 1.42V ~ 3.6V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 93 / 100 |
| Sigma Delta | Yes |

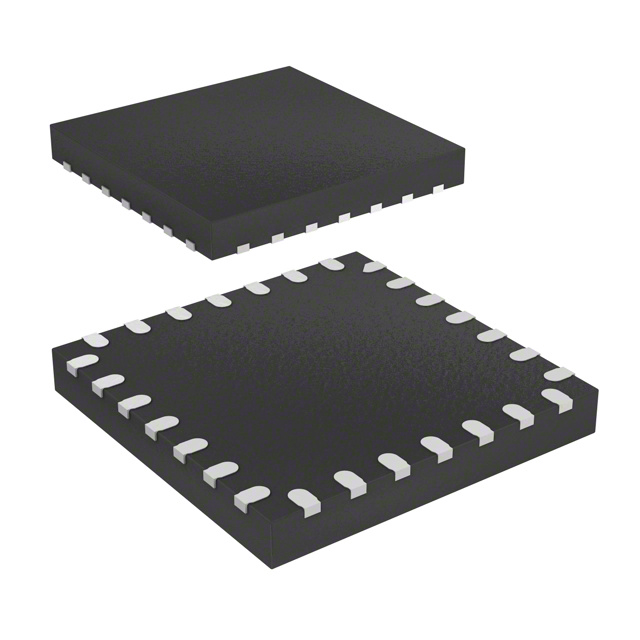

| Supplier Device Package | 28-QFN (4x4) |
