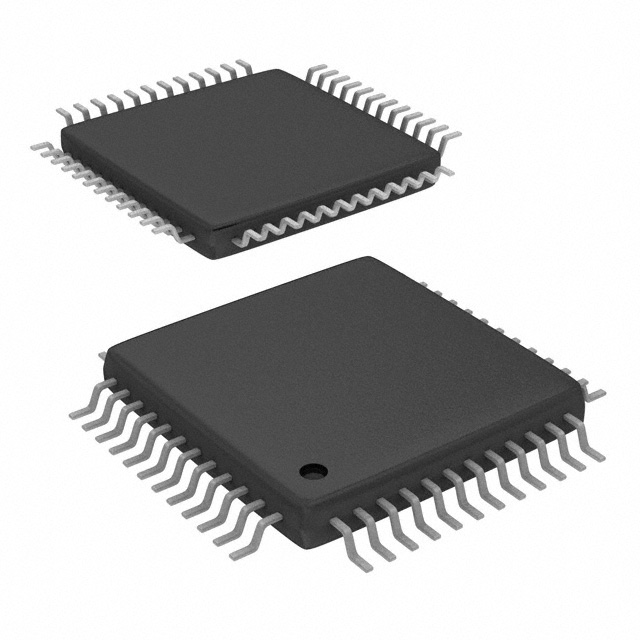

WM8776SEFT/V
IC CODEC 24BIT 5CH MUX 48TQFPManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
Cirrus Logic Inc. WM8776SEFT-V is a 24-bit stereo audio CODEC featuring an IP multiplexer interface and SPI data communication. This component offers a signal-to-noise ratio of 102 dB for ADCs and 108 dB for DACs, with a dynamic range of 102 dB (ADC) and 108 dB (DAC). The device operates with analog supply voltages from 2.7V to 5.5V and digital supply voltages from 2.7V to 3.6V. It utilizes Sigma Delta conversion technology and is housed in a 48-TQFP (7x7) surface-mount package, supplied in trays. The WM8776SEFT-V is suitable for a variety of audio applications, including consumer electronics and professional audio equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Stereo Audio, IP Multiplexer |
| Data Interface | SPI |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 102 / 108 |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | 102 / 108 |
| Sigma Delta | Yes |
| Supplier Device Package | 48-TQFP (7x7) |
