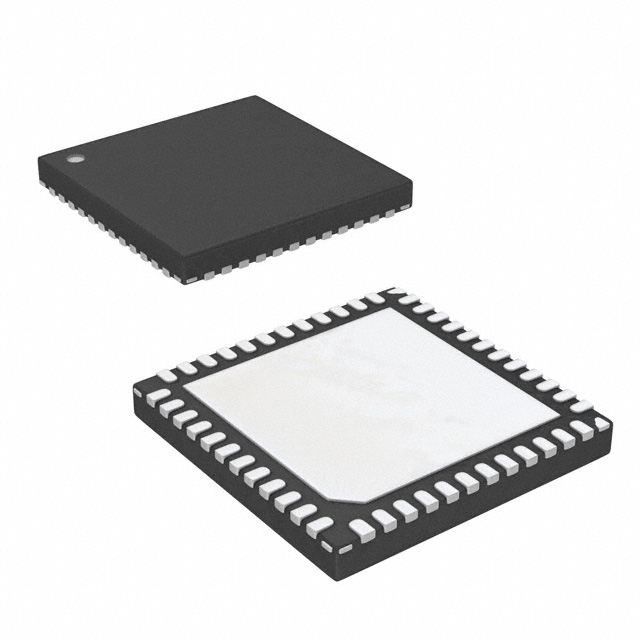

WM8753CLGEFL/V
IC CODEC VOICE/AUDIO 48QFNManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
The Cirrus Logic WM8753CLGEFL-V is a stereo audio codec designed for high-fidelity voice and audio applications. This component offers 24-bit resolution for both Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs), with typical Signal-to-Noise Ratios of 95 dB for ADCs and 98 dB for DACs. It features a serial data interface and a Sigma-Delta architecture. The device supports analog supply voltages from 1.8V to 3.6V and digital supply voltages within the same range. Packaged in a 48-QFN (7x7) with an exposed pad, it is suitable for surface mount applications. The WM8753CLGEFL-V operates within an ambient temperature range of -25°C to 85°C and is commonly found in consumer electronics, mobile devices, and pro audio equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V ~ 3.6V |
| Voltage - Supply, Digital | 1.8V ~ 3.6V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 95 / 98 |
| Sigma Delta | Yes |
| Supplier Device Package | 48-QFN (7x7) |
