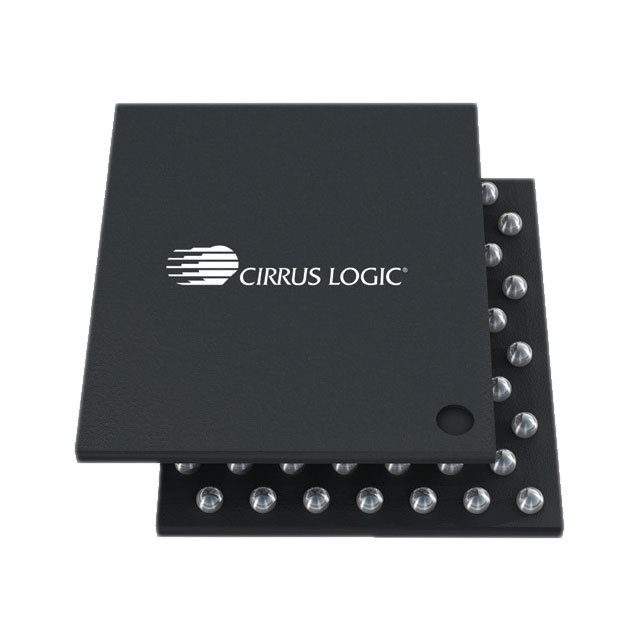

CS47L15-CWZR
IC AUDIO CODEC 24 BIT 70-WLCSPManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
The Cirrus Logic Inc. CS47L15-CWZR is a 24-bit audio codec designed for high-performance audio applications. This component features 3 Analog-to-Digital Converters (ADCs) and 3 Digital-to-Analog Converters (DACs), supporting a sigma-delta architecture for superior signal integrity. The data interface utilizes SPI for seamless integration into complex digital systems. Operating across an analog supply voltage range of 1.71V to 1.89V and a digital supply voltage of 1.14V to 1.26V, the CS47L15-CWZR is engineered for efficient power consumption. Its compact 70-WLCSP (3.01x3.51) package facilitates space-constrained designs, making it suitable for deployment in portable electronics, automotive audio systems, and consumer audio devices. The device operates within a temperature range of -40°C to 85°C and is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 70-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Audio |
| Data Interface | SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.71V ~ 1.89V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 3 / 3 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | Yes |
| Supplier Device Package | 70-WLCSP (3.01x3.51) |
