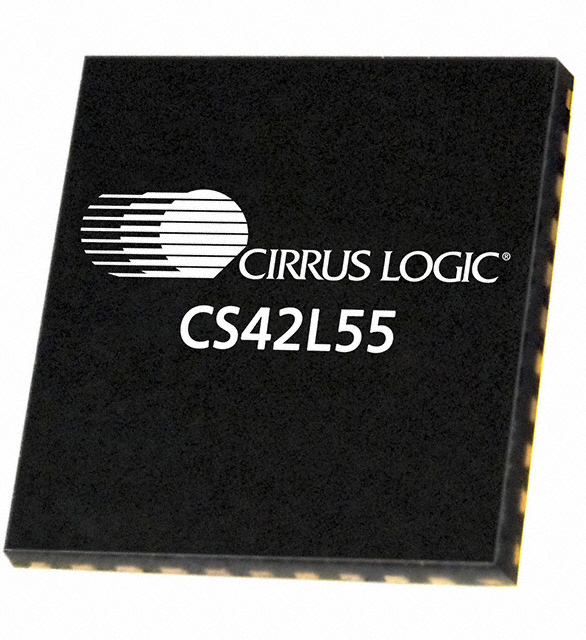

CS42L55-CNZ
IC CODEC STER H-HDPN AMP 36QFNManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
Cirrus Logic Inc. CS42L55-CNZ is a 24-bit stereo audio codec featuring a high-performance, low-power architecture. This component provides a stereo audio interface with a serial data interface and is packaged in a 36-QFN-EP (5x5) surface-mount configuration. The device offers a typical dynamic range of 95 dB for ADCs and 99 dB for DACs. It operates within an analog and digital supply voltage range of 1.65V to 2.71V and is rated for an operating temperature range of -40°C to 85°C. The CS42L55-CNZ is suitable for applications in consumer electronics and mobile devices requiring high-fidelity audio processing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 36-QFN |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.65V ~ 2.71V |
| Voltage - Supply, Digital | 1.65V ~ 2.71V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 95 / 99 |
| Number of ADCs / DACs | 1 / 1 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | Yes |
| Supplier Device Package | 36-QFN-EP (5x5) |
