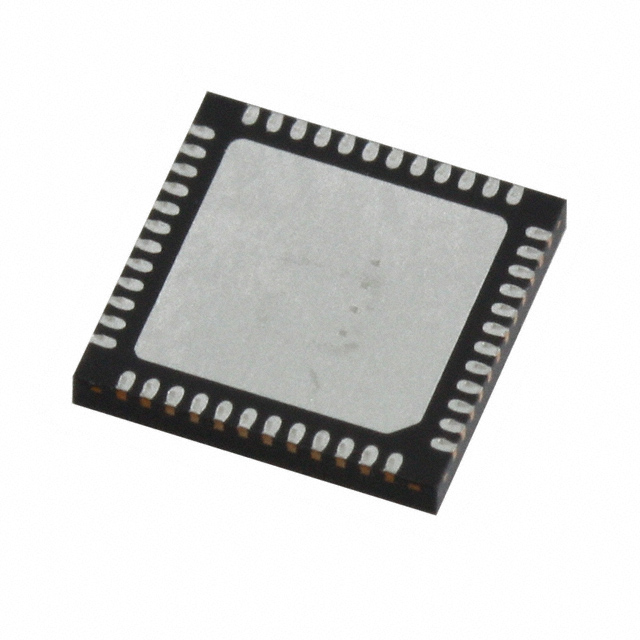

CS4207-CNZ
IC CODEC AUD HDPN AMP COMM 48QFNManufacturer: Cirrus Logic Inc.
Categories: CODECS
Quality Control: Learn More
The Cirrus Logic Inc. CS4207-CNZ is a 24-bit audio codec featuring an HD interface and S/PDIF support, housed in a 48-QFN-EP (6x6) package suitable for surface mounting. This component offers a typical dynamic range of 105 dB for ADCs and 110 dB for DACs, with a 2:3 ratio of ADCs to DACs. It operates across a wide temperature range of -40°C to 85°C, with analog and digital supply voltages ranging from 2.97V to 5.25V. The Sigma Delta architecture contributes to its audio performance. This device is commonly utilized in consumer electronics, communication systems, and audio processing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-QFN |
| Mounting Type | Surface Mount |
| Type | Audio, HD |
| Data Interface | HDA, S/PDIF |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.97V ~ 5.25V |
| Voltage - Supply, Digital | 2.97V ~ 5.25V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 105 / 110 |
| Number of ADCs / DACs | 2 / 3 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | Yes |
| Supplier Device Package | 48-QFN-EP (6x6) |
