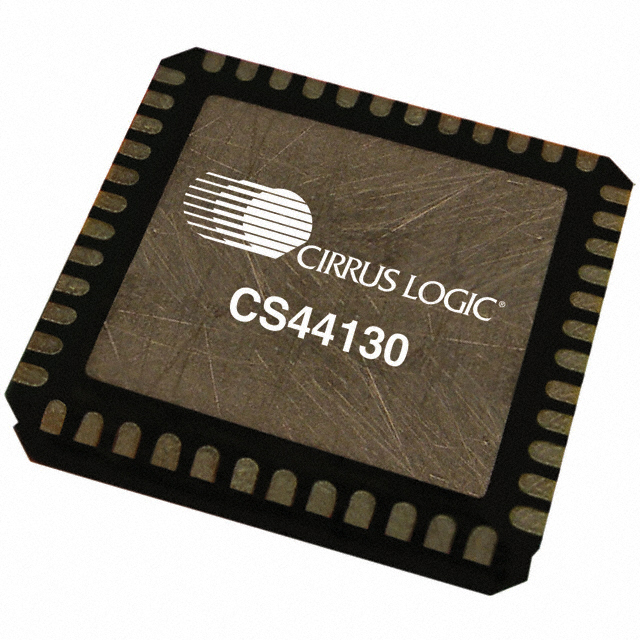

CS44130-CNZ
IC AMP CLASS D DL/QUAD 60W 48QFNManufacturer: Cirrus Logic Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Cirrus Logic Inc. Popguard® CS44130-CNZ is a high-performance Class D audio amplifier IC. This component offers flexible configuration options, supporting either 2-channel stereo or 4-channel quad output. It delivers up to 60W into a 4 Ohm load in mono mode or 15W into a 4 Ohm load per channel when configured for quad operation. Key features include integrated depop circuitry, PWM modulation, and comprehensive protection against short-circuit and thermal events, along with a standby mode for power efficiency. Designed for surface mounting within a 48-QFN package, the CS44130-CNZ operates across a supply voltage range of 10.8V to 21V. This device is well-suited for applications in automotive audio systems and home theater equipment.
Additional Information
Series: Popguard®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Depop, PWM, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tray |
| Package / Case | 48-QFN |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | - |
| Voltage - Supply | 10.8V ~ 21V |
| Max Output Power x Channels @ Load | 60W x 1 @ 4Ohm or 15W x 4 @ 4Ohm |
| Supplier Device Package | - |
