CS4461-CZZ
IC ADC SIGMA-DELTA 24TSSOPManufacturer: Cirrus Logic Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

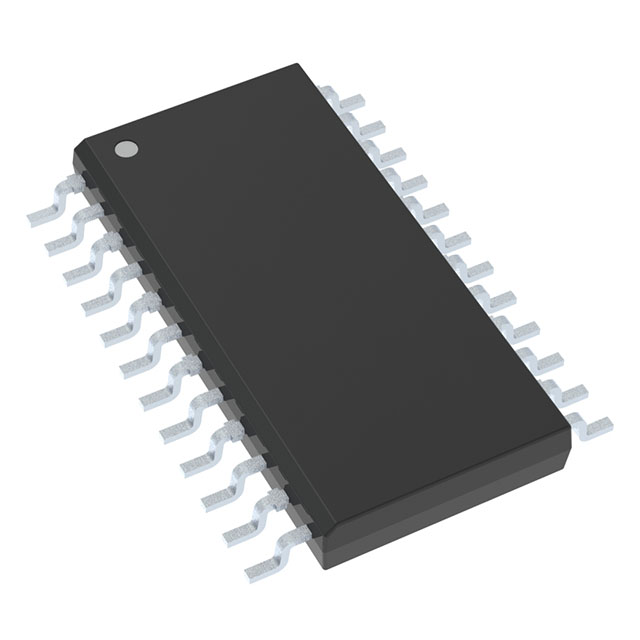

Cirrus Logic Inc. CS4461-CZZ is a single-channel, 24-bit sigma-delta analog-to-digital converter. This surface-mount component, housed in a 24-TSSOP package, features a differential input and an SPI data interface. It operates with an analog supply voltage of 5V and a digital supply range of 3.1V to 5.25V. The internal reference type contributes to its performance. This ADC is suitable for applications in audio processing and consumer electronics. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | - |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -10°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.1V ~ 5.25V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 24-TSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
