CS4398-CZZR
IC DAC/AUDIO 24BIT 216K 28TSSOPManufacturer: Cirrus Logic Inc.
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
Cirrus Logic Inc. CS4398-CZZR is a 24-bit stereo digital-to-analog converter (DAC) optimized for high-fidelity audio applications. This component supports DSD and PCM data interfaces, with a maximum sampling rate of 216kHz. It features two audio channels and operates from a 3.1V to 5.25V supply voltage, with separate analog and digital supply sources. The CS4398-CZZR is housed in a 28-TSSOP package for surface mounting and is supplied on a tape and reel. Its capabilities make it suitable for use in consumer electronics, professional audio equipment, and automotive infotainment systems. The operating temperature range for this device is -10°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | DAC, Audio |
| Data Interface | DSD, PCM |
| Operating Temperature | -10°C ~ 70°C |
| Voltage - Supply | 3.1V ~ 5.25V |
| Sampling Rate (Per Second) | 216k |
| Resolution (Bits) | 24 b |
| Voltage Supply Source | Analog and Digital |
| Supplier Device Package | 28-TSSOP |
| Number of Channels | 2 |
Request a Quote
Clients Also Buy
WM8956CGEFL/V
IC DAC/AUDIO 24BIT 48K 32QFN

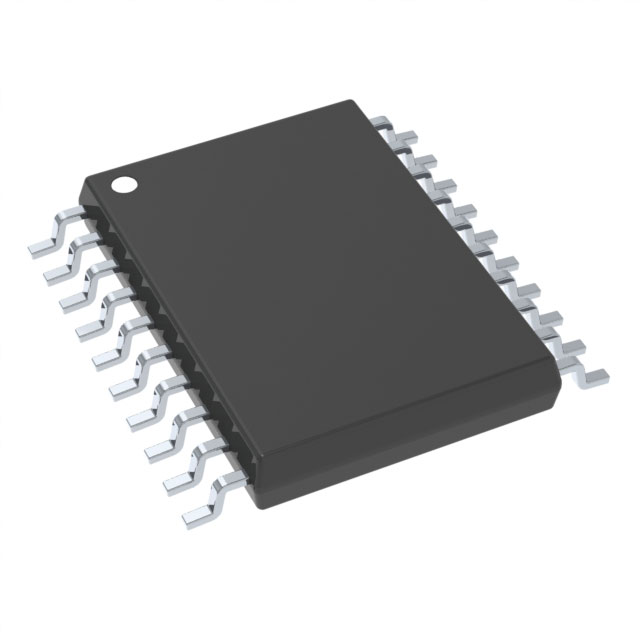

CS4392-KZZ
