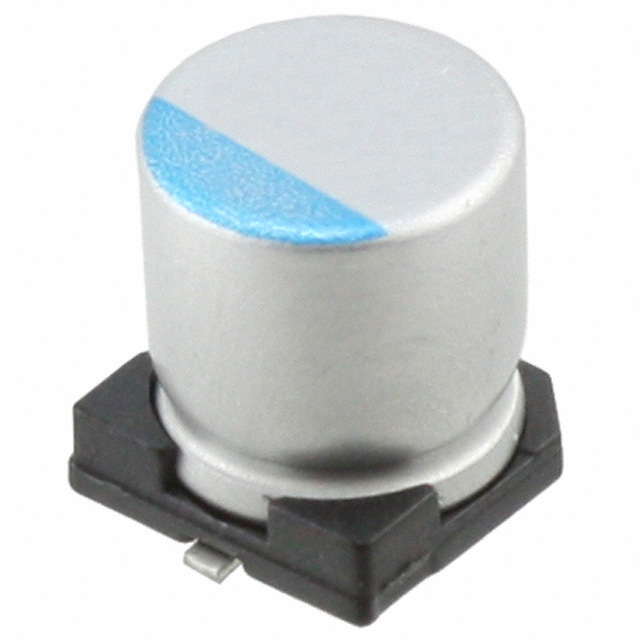

APXE100ARA470ME61G
CAP ALUM POLY 47UF 20% 10V SMDManufacturer: Chemi-Con
Categories: Polymer Capacitors
Quality Control: Learn More
47 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 2000 Hrs @ 105°C
Additional Information
Series: NPCAP™-PXERoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197"" Dia (5.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.209"" L x 0.209"" W (5.30mm x 5.30mm) |
| Height - Seated (Max) | 0.228"" (5.80mm) |
| Capacitance | 47 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz |
