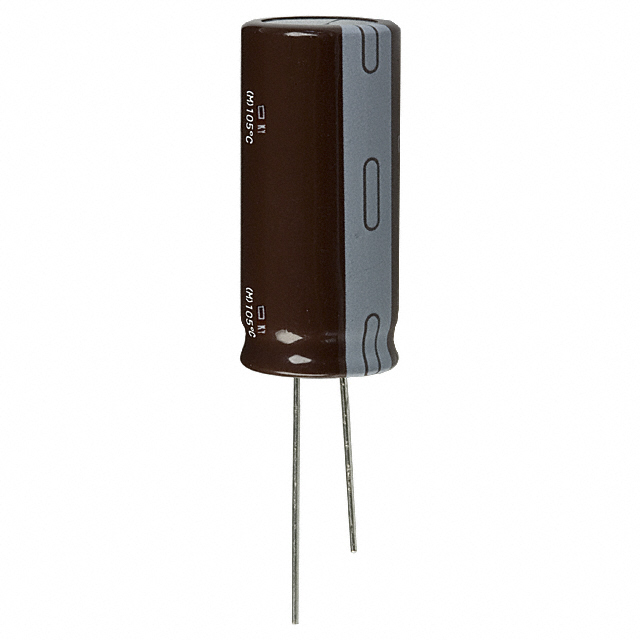

EKY-500ELL272MM40S
CAP ALUM 2700UF 20% 50V RADIALManufacturer: Chemi-Con
Categories: Aluminum Electrolytic Capacitors
Quality Control: Learn More
Chemi-Con KY series aluminum electrolytic capacitors, part number EKY-500ELL272MM40S, offer a 2700 µF capacitance with a ±20% tolerance and a 50 V rating. These radial, can-type capacitors feature a 10000-hour life expectancy at 105°C. With a low impedance of 14 mOhms and a ripple current rating of 3.8 A at 100 kHz, they are suitable for demanding applications. The component has a diameter of 0.709 inches (18.00mm), a seated height of 1.634 inches (41.50mm), and a lead spacing of 0.295 inches (7.50mm). Operating temperature range is -40°C to 105°C. This polarized component is designed for through-hole mounting and is commonly utilized in industrial power supplies, automotive electronics, and general-purpose filtering applications.
Additional Information
Series: KYRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 0.709"" Dia (18.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.295"" (7.50mm) |
| Ratings | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Surface Mount Land Size | - |
| Height - Seated (Max) | 1.634"" (41.50mm) |
| Capacitance | 2700 µF |
| Voltage - Rated | 50 V |
| Impedance | 14 mOhms |
| Ripple Current @ Low Frequency | 2.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
