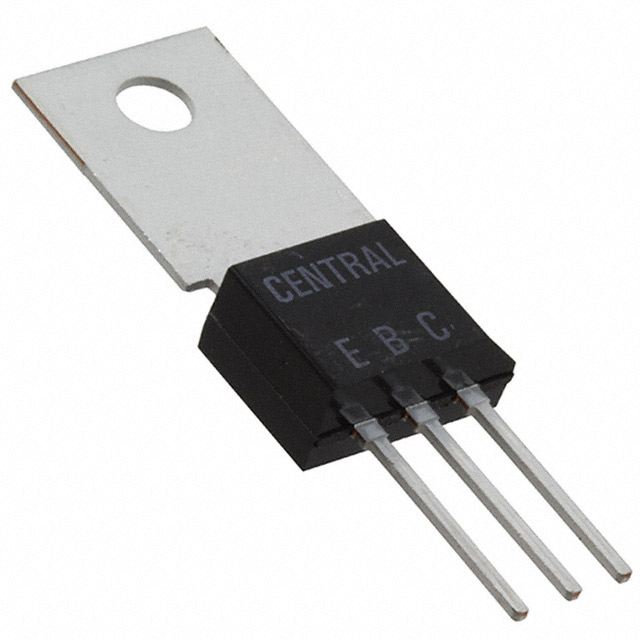

CQ202-4BS
TRIAC INT TRIGGER 200V 4A TO202Manufacturer: Central Semiconductor Corp
Categories: TRIACs
Quality Control: Learn More
Central Semiconductor Corp TRIAC, part number CQ202-4BS. This internally triggered TRIAC features a 200V off-state voltage and a 4A RMS on-state current. The CQ202-4BS offers a maximum gate trigger current (Igt) of 9 mA and a maximum holding current (Ih) of 5 mA, with a gate trigger voltage (Vgt) not exceeding 1.75V. Designed for through-hole mounting, it utilizes the TO-202 long tab package. Operating temperature range is -40°C to 125°C (TJ). This component is suitable for AC power control applications in industries such as appliance control, lighting control, and industrial automation. Packaged in bulk.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-202 Long Tab |
| Mounting Type | Through Hole |
| Triac Type | Internally Triggered |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 9 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.75 V |
| Supplier Device Package | TO-202 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 200 V |
