CZ5386B TR
DIODE ZENER 180V 5W DO201Manufacturer: Central Semiconductor Corp
Categories: Single Zener Diodes
Quality Control: Learn More

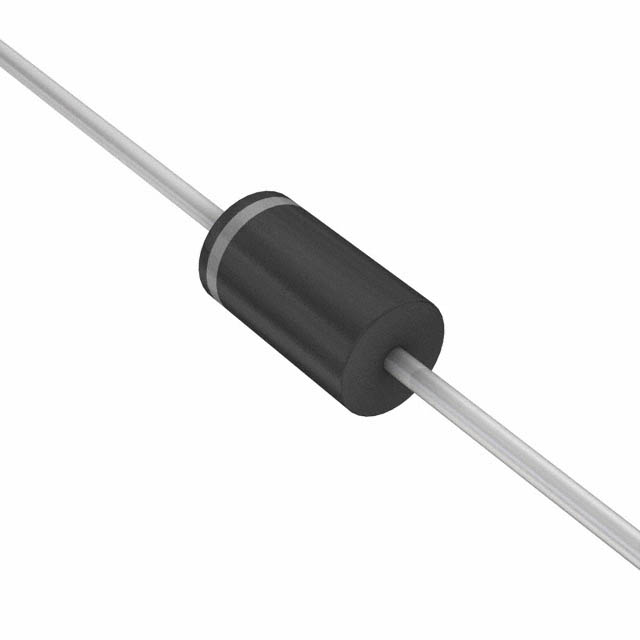

Central Semiconductor Corp CZ5386B-TR is a 5W Zener diode with a nominal breakdown voltage of 180V and a tolerance of ±5%. This through-hole component, housed in a DO-201AA (DO-27) axial package, features a maximum Zener impedance (Zzt) of 430 Ohms. The diode exhibits a reverse leakage current of 500 nA at 137V and a forward voltage (Vf) of 1.2V at 1A. Designed for operation across a wide temperature range of -65°C to 200°C (TJ), this component is supplied in tape and reel packaging. It finds application in power supply regulation and overvoltage protection circuits across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AA, DO-27, Axial |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 180 V |
| Impedance (Max) (Zzt) | 430 Ohms |
| Supplier Device Package | DO-201 |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A |
| Current - Reverse Leakage @ Vr | 500 nA @ 137 V |
