CMPZ4101 TR
DIODE ZENER 8.2V 350MW SOT23Manufacturer: Central Semiconductor Corp
Categories: Single Zener Diodes
Quality Control: Learn More

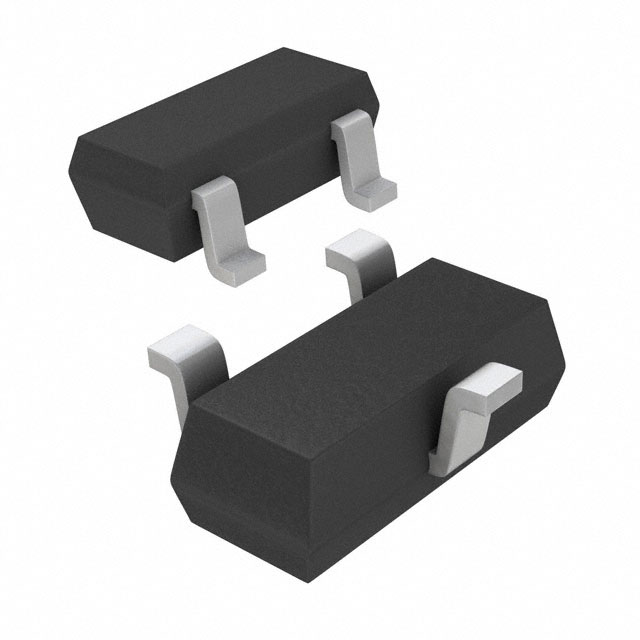

Central Semiconductor Corp CMPZ4101-TR is an 8.2V Zener diode with a power rating of 350mW. This SOT-23 packaged component offers a ±5% voltage tolerance and a low reverse leakage current of 1 µA at 6.3V. Featuring a typical Zener impedance of 200 Ohms, it operates across a temperature range of -65°C to 150°C. The forward voltage (Vf) is a maximum of 1V at 200mA. This device is supplied in tape and reel packaging, suitable for high-volume surface mount applications. The CMPZ4101-TR finds utility in voltage regulation and reference circuits across various industries including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
| Impedance (Max) (Zzt) | 200 Ohms |
| Supplier Device Package | SOT-23 |
| Power - Max | 350 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 6.3 V |
