CLL4705 BK
DIODE ZENNER 18V 500MW SOD-80Manufacturer: Central Semiconductor Corp
Categories: Single Zener Diodes
Quality Control: Learn More

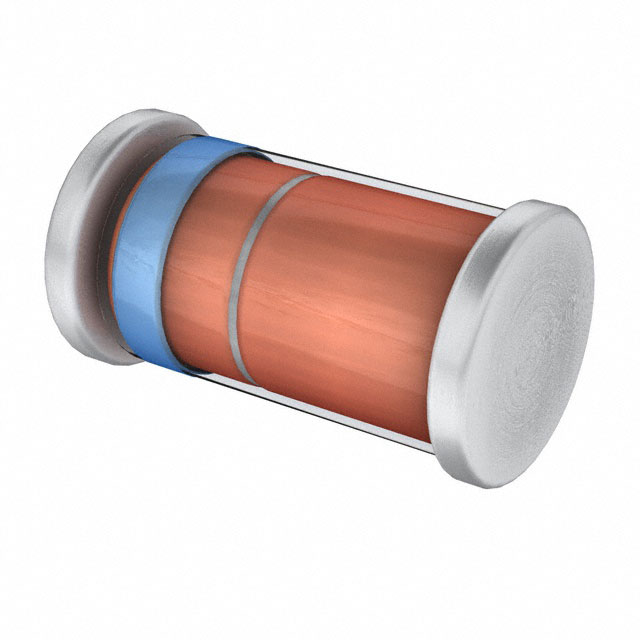

Central Semiconductor Corp CLL4705-BK is an 18V Zener Diode with a power dissipation of 500mW. This component features a ±5% voltage tolerance and a low reverse leakage current of 50 nA at 13.6 V. The forward voltage is a maximum of 1.5 V at 100 mA. Packaged in a surface mount SOD-80 (DO-213AC, MINI-MELF) configuration, it operates across a wide temperature range of -65°C to 200°C. This device is suitable for voltage regulation and reference applications in various industries including telecommunications, industrial controls, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Bulk |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 18 V |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 50 nA @ 13.6 V |
