CLL4625 TR TIN/LEAD
DIODE ZENER SMDManufacturer: Central Semiconductor Corp
Categories: Single Zener Diodes
Quality Control: Learn More

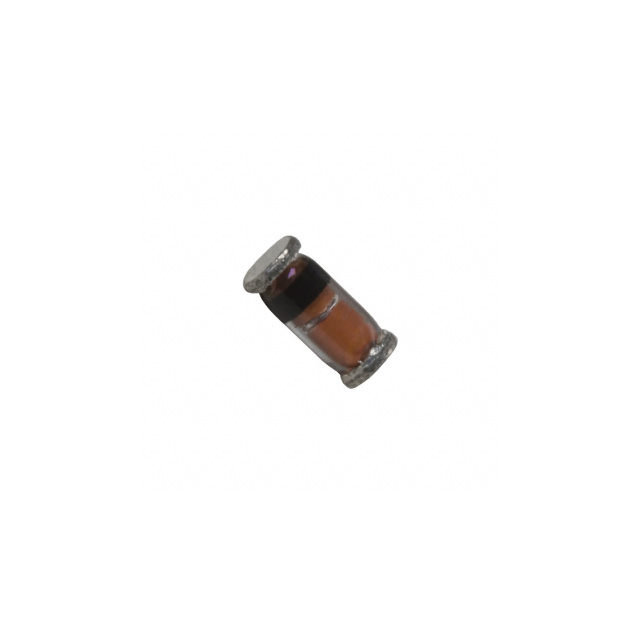

Central Semiconductor Corp CLL4625-TR-TIN-LEAD is a Zener diode with a nominal breakdown voltage of 5.1 V and a power rating of 500 mW. This device features a ±5% tolerance. The CLL4625-TR-TIN-LEAD is housed in a compact SOD-80 (DO-213AC, MINI-MELF) package, suitable for surface mounting. Key electrical specifications include a maximum forward voltage of 1 V at 200 mA and a reverse leakage current of 10 µA at 3 V. The Zener impedance (Zzt) is a maximum of 1500 Ohms. This component operates reliably across a wide temperature range from -65°C to 200°C (TJ). The product is supplied in Tape & Reel packaging. It finds application in voltage regulation and reference circuits across various industries including telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
| Impedance (Max) (Zzt) | 1500 Ohms |
| Supplier Device Package | SOD-80 |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 3 V |
