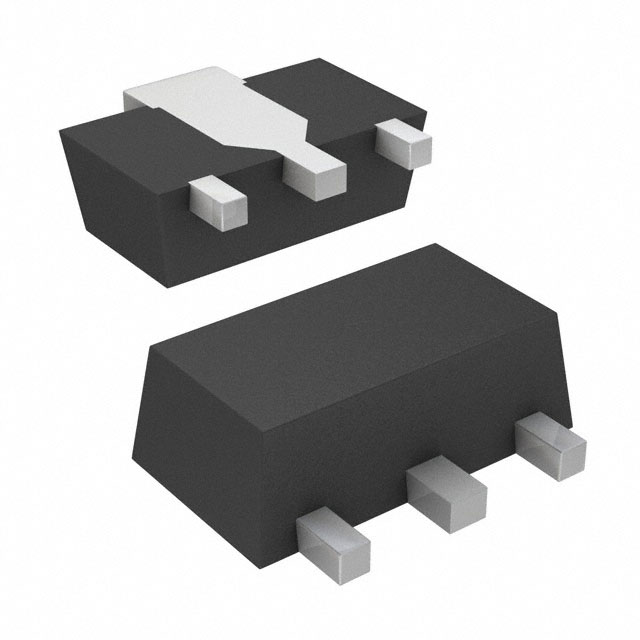

CXDM6053N TR PBFREE
MOSFET N-CH 60V 5.3A SOT-89Manufacturer: Central Semiconductor Corp
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 5.3A (Ta) 1.2W (Ta) Surface Mount SOT-89
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5.3A (Ta) |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 5.3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.2W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | SOT-89 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | 20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.8 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 30 V |
