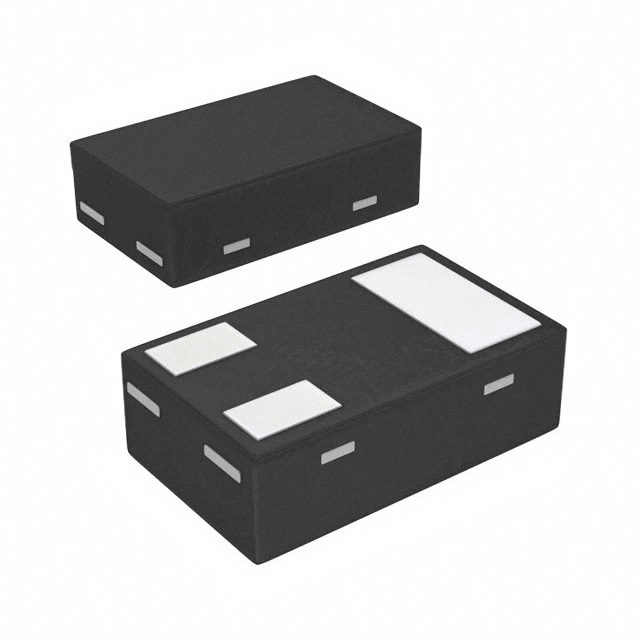

CEDM8004VL TR PBFREE
MOSFET P-CH 30V 450MA SOT883VLManufacturer: Central Semiconductor Corp
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Central Semiconductor Corp CEDM8004VL-TR-PBFREE is a P-Channel MOSFET designed for surface mount applications. This device features a 30V drain-to-source voltage (Vdss) and a continuous drain current of 450mA at 25°C. The on-resistance (Rds On) is specified as 1.1 Ohm maximum at 430mA and 4.5V gate-source voltage. With a gate charge (Qg) of 0.88 nC maximum at 4.5V, it offers efficient switching characteristics. The SOT-883VL package is ideal for space-constrained designs. This component is utilized in various industries including consumer electronics and industrial automation. The operating temperature range is from -65°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 450mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 430mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-883VL |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | 8V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.88 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 55 pF @ 25 V |
