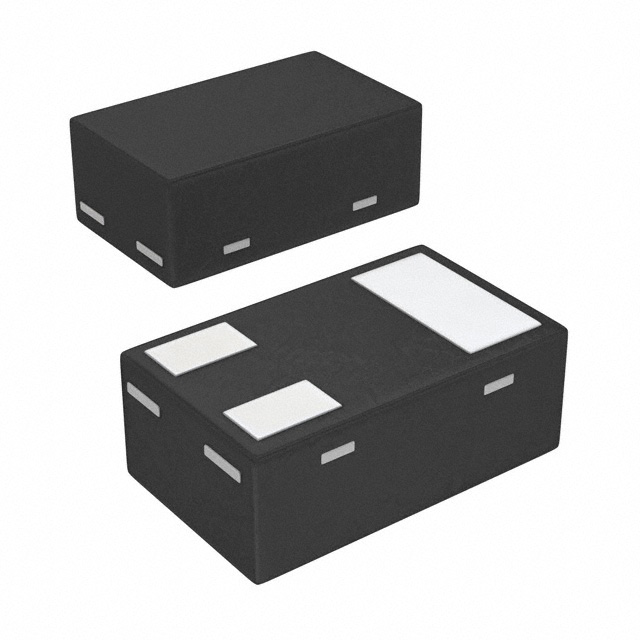

CEDM7002AE TR PBFREE
MOSFET N-CH 60V 300MA SOT883LManufacturer: Central Semiconductor Corp
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 300mA (Ta) 100mW (Ta) Surface Mount SOT-883L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.4Ohm @ 500mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | SOT-883L |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Vgs (Max) | 20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF @ 25 V |
