UF4004 BK
DIODE GEN PURP 400V 1A DO41Manufacturer: Central Semiconductor Corp
Categories: Single Diodes
Quality Control: Learn More

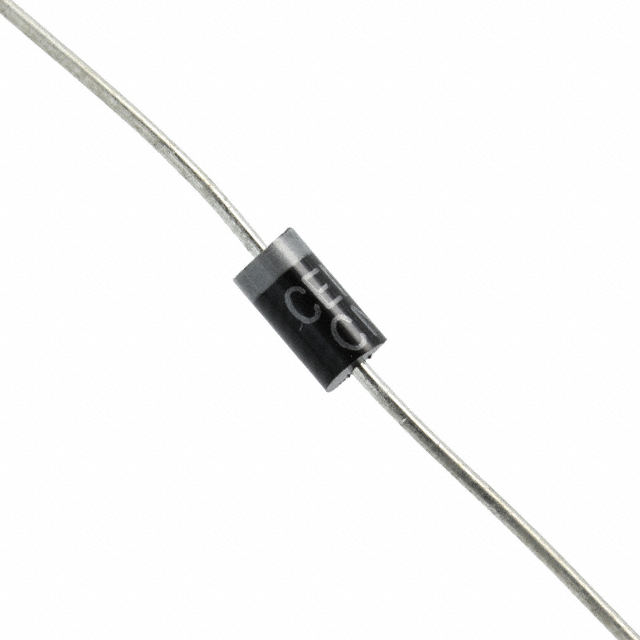

Central Semiconductor Corp UF4004-BK is a fast recovery general-purpose diode designed for demanding applications. This axial-leaded component, housed in a DO-41 (DO-204AL) package, offers a maximum DC reverse voltage of 400V and an average rectified current of 1A. Its forward voltage drop is rated at a maximum of 1V at 1A. With a reverse leakage current of only 10 µA at 400V and a reverse recovery time of 50 ns, it is suitable for power supply rectification, switching power supplies, and high-frequency circuits. The UF4004-BK operates across a wide temperature range of -65°C to 150°C. It is commonly utilized in industrial automation, consumer electronics, and lighting control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
