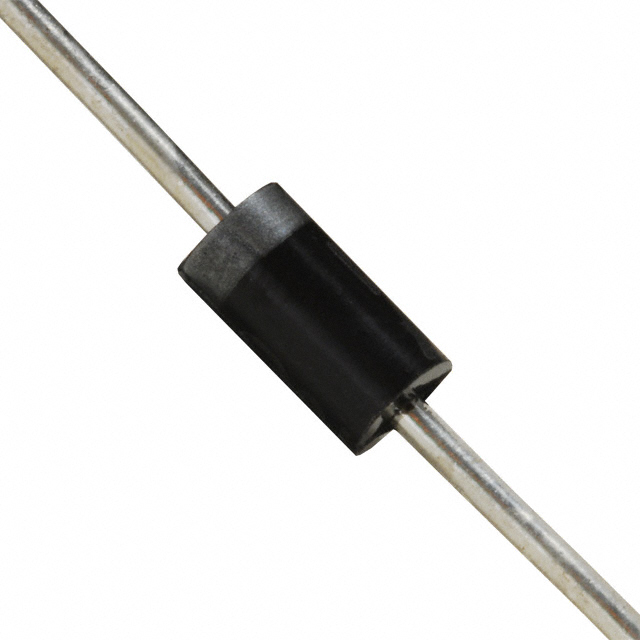

UF4002 TR
DIODE GEN PURP 100V 1A DO41Manufacturer: Central Semiconductor Corp
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V 1A Through Hole DO-41
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
Request a Quote
Clients Also Buy

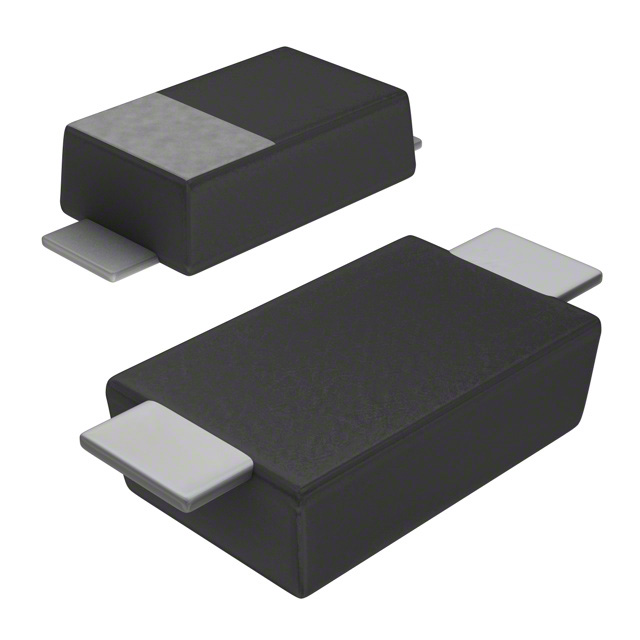

CMMSH1-40L TR PBFREE
DIODE SCHOTTKY 40V 1A SOD123F
CPD69-CMR1-06M-CT20
DIODE GP 600V 1A DIE 1=20PCS

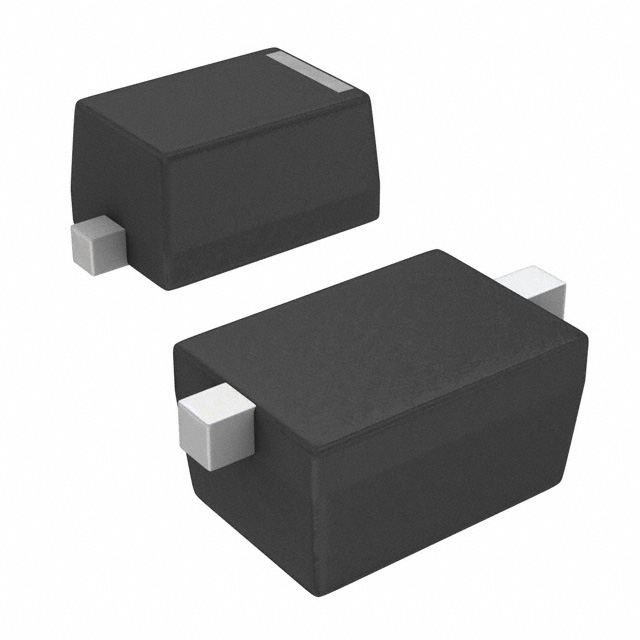

CMOD2004 TR13 PBFREE
