BAV45
DIODE GEN PURP 20V 50MA TO18Manufacturer: Central Semiconductor Corp
Categories: Single Diodes
Quality Control: Learn More

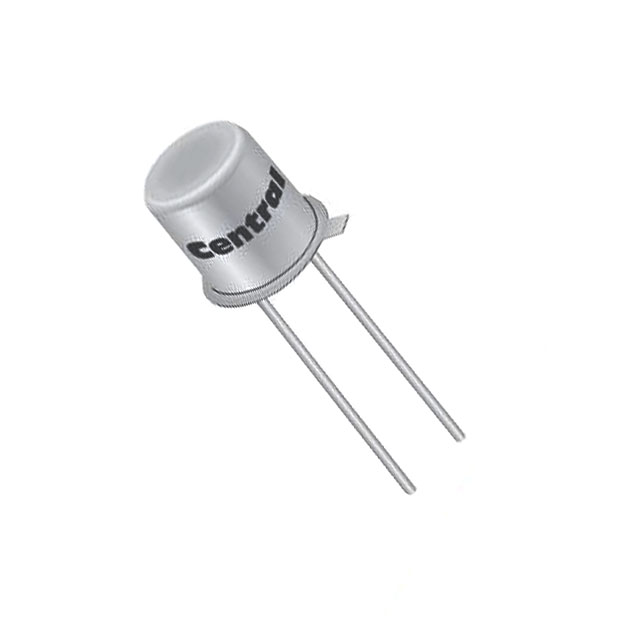

Central Semiconductor Corp BAV45 is a general-purpose diode designed for high-speed switching applications. This through-hole component, packaged in a TO-18-2 metal can, offers a maximum reverse voltage of 20V and an average rectified forward current of 50mA. The BAV45 exhibits a low forward voltage drop of 1V at 10mA and a low reverse leakage current of 5pA at 5V. With a junction capacitance of 1.3pF @ 0V, 1MHz, and a reverse recovery time of 600ns, it is suitable for signal processing and amplification circuits. Operating temperature range is -65°C to 125°C. This component finds application in industrial control, telecommunications, and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 |
| Mounting Type | Through Hole |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 600 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 1.3pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 50mA |
| Supplier Device Package | TO-18 |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 5 pA @ 5 V |
