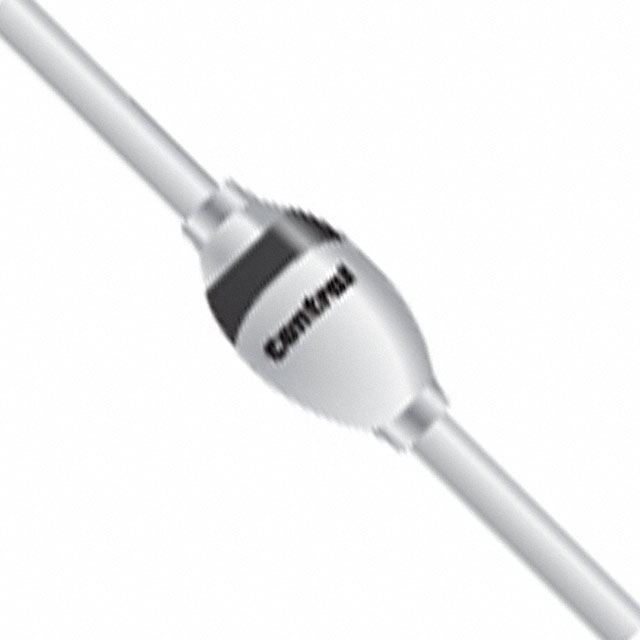

1N5060 TR PBFREE
DIODE GEN PURP 400V 1A GPR-1AManufacturer: Central Semiconductor Corp
Categories: Single Diodes
Quality Control: Learn More
Central Semiconductor Corp 1N5060-TR-PBFREE is a general-purpose axial diode with a 400V reverse voltage rating and a 1A average rectified current capability. This component features a fast recovery time of less than 500ns for currents greater than 200mA (Io). The forward voltage drop is a maximum of 1.2V at 1A, and the reverse leakage current is 5µA at 400V. With a junction operating temperature range of -65°C to 175°C, it is suitable for applications in power supply rectification, voltage clamping, and general switching circuits. The diode is supplied in a GPR-1A package, configured for through-hole mounting and offered on tape and reel (TR). Capacitance is rated at 15pF at 4V and 1MHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | R-1, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | GPR-1A |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
