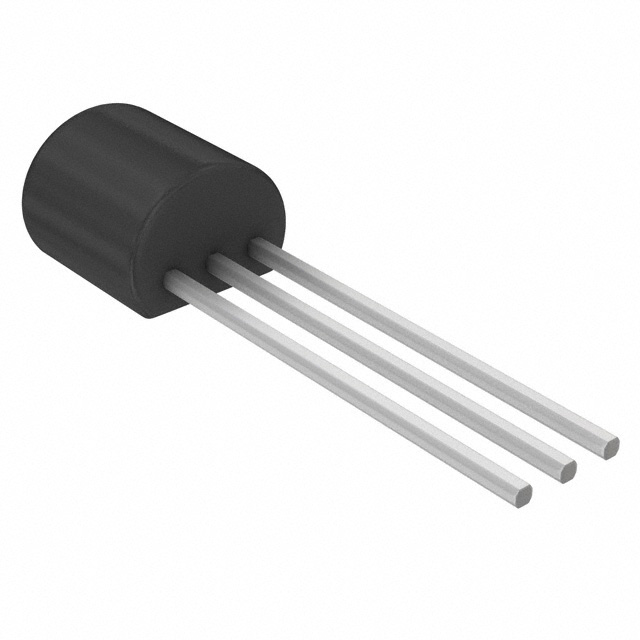

MPSA64 PBFREE
TRANS PNP DARL 30V 0.5A TO92-3Manufacturer: Central Semiconductor Corp
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP - Darlington 30 V 500 mA 125MHz 625 mW Through Hole TO-92-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| Transistor Type | PNP - Darlington |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 100µA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20000 @ 100mA, 5V |
| Frequency - Transition | 125MHz |
| Supplier Device Package | TO-92-3 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 625 mW |
