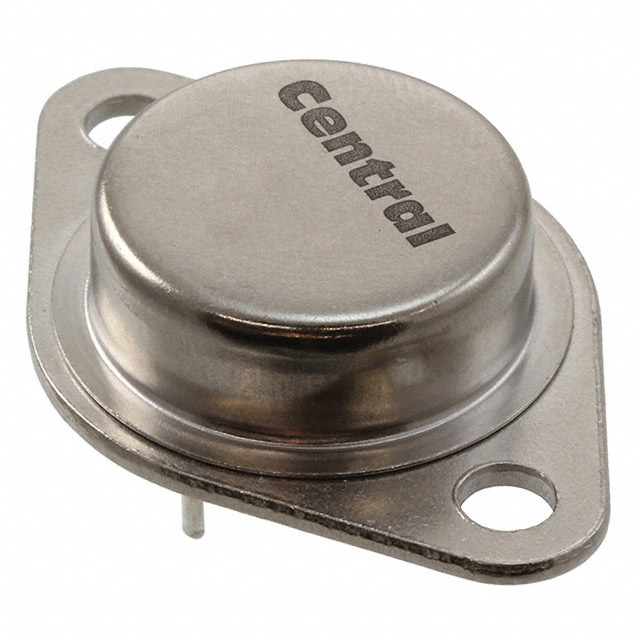

2N6545 PBFREE
TRANS NPN 400V 8A TO3Manufacturer: Central Semiconductor Corp
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 400 V 8 A 28MHz 125 W Through Hole TO-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 2A, 8A |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 7 @ 5A, 3V |
| Frequency - Transition | 28MHz |
| Supplier Device Package | TO-3 |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Power - Max | 125 W |
