CMPF4392 TR PBFREE
JFET N-CH 40V SOT23Manufacturer: Central Semiconductor Corp
Categories: JFETs
Quality Control: Learn More
JFET N-Channel 40 V 350 mW Surface Mount SOT-23
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 14pF @ 20V |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Supplier Device Package | SOT-23 |
| Drain to Source Voltage (Vdss) | 40 V |
| Power - Max | 350 mW |
| Resistance - RDS(On) | 60 Ohms |
| Voltage - Cutoff (VGS off) @ Id | 2 V @ 1 nA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 25 mA @ 20 V |
Request a Quote
Clients Also Buy

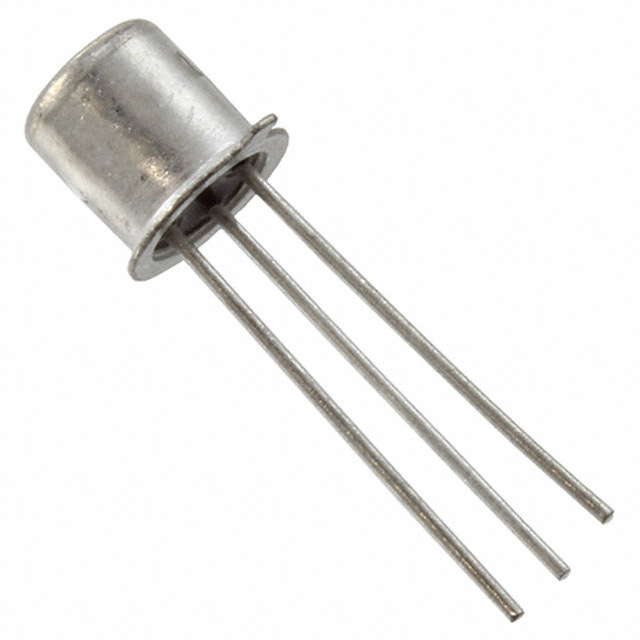

2N4392 PBFREE
