CMXDM7002A TR PBFREE
MOSFET 2N-CH 60V 0.28A SOT26Manufacturer: Central Semiconductor Corp
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Central Semiconductor Corp CMXDM7002A-TR-PBFREE is a dual N-channel MOSFET array configured in a SOT-26 package. This device offers a drain-to-source voltage (Vdss) of 60V and a continuous drain current (Id) of 280mA at 25°C. With a maximum power dissipation of 350mW and an on-resistance (Rds On) of 2 Ohms at 500mA and 10V, it is suitable for applications requiring efficient switching. Key parameters include a gate charge (Qg) of 0.59nC at 4.5V and an input capacitance (Ciss) of 50pF at 25V. The MOSFET array is designed for surface mounting and operates across a temperature range of -65°C to 150°C. This component finds utility in various consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 350mW |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 280mA |
| Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Rds On (Max) @ Id, Vgs | 2Ohm @ 500mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 0.59nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-26 |
Request a Quote
Clients Also Buy

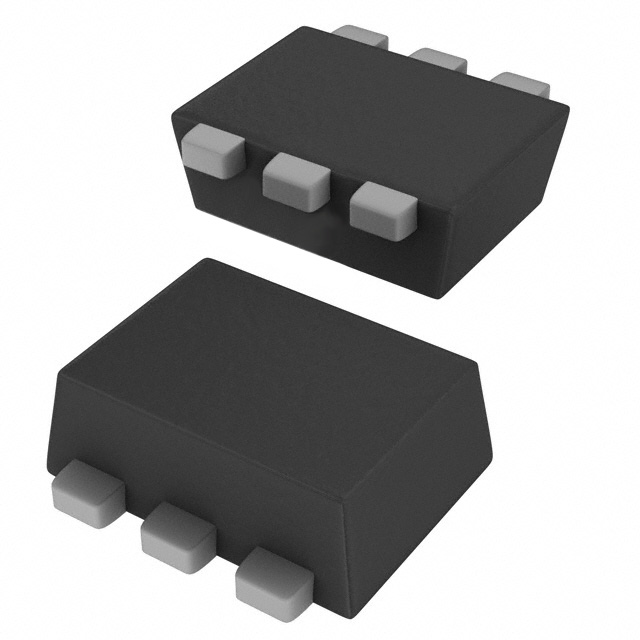

CMRDM3575 TR PBFREE
