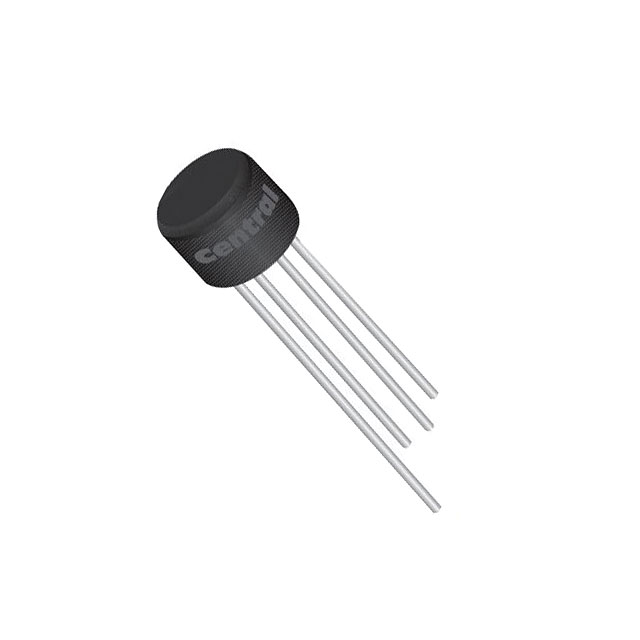

CBR2-060
BRIDGE RECT 1P 600V 2A A CASEManufacturer: Central Semiconductor Corp
Categories: Bridge Rectifiers
Quality Control: Learn More
Central Semiconductor Corp CBR2-060 is a single-phase bridge rectifier designed for robust power rectification applications. This through-hole component, housed in an A Case package, offers a maximum repetitive peak reverse voltage of 600 V and an average rectified output current of 2 A. The standard technology employed ensures reliable performance with a typical forward voltage drop of 1 V at 1 A and a low reverse leakage current of 10 µA at its maximum reverse voltage. Operating across a wide temperature range of -65°C to 150°C (TJ), the CBR2-060 is suitable for demanding environments. Its construction makes it a staple in power supplies, industrial controls, and automotive applications where efficient DC conversion is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, A Case |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | A Case |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
