CMPTH81 BK
RF TRANS PNP 20V 600MHZ SOT23Manufacturer: Central Semiconductor Corp
Categories: Bipolar RF Transistors
Quality Control: Learn More

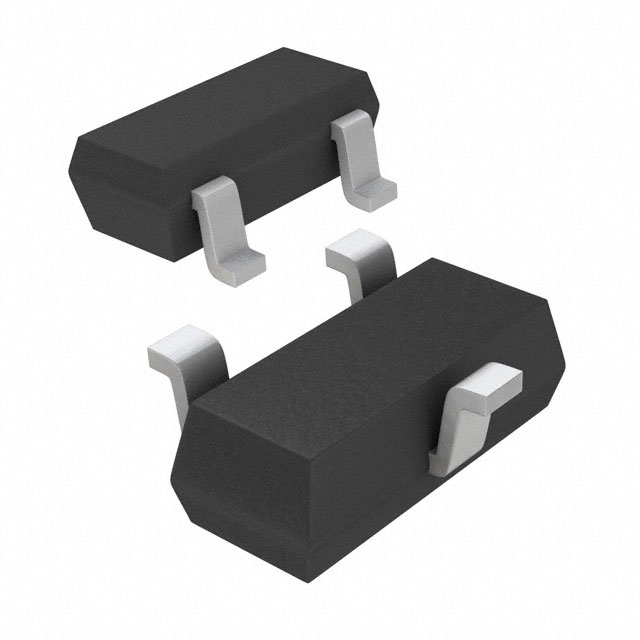

Central Semiconductor Corp PNP RF Transistor, part number CMPTH81-BK, is a high-frequency bipolar device designed for demanding radio frequency applications. This SOT-23 packaged transistor features a 20V collector-emitter breakdown voltage and a maximum collector current of 50mA. With a transition frequency of 600MHz and a maximum power dissipation of 225mW, the CMPTH81-BK is suitable for amplifier and switching circuits in telecommunications, industrial control, and test and measurement equipment. It offers a minimum DC current gain (hFE) of 60 at 5mA collector current and 10V collector-emitter voltage. The operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Gain | - |
| Power - Max | 225mW |
| Current - Collector (Ic) (Max) | 50mA |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V |
| Frequency - Transition | 600MHz |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | SOT-23 |
