NE85634-T1

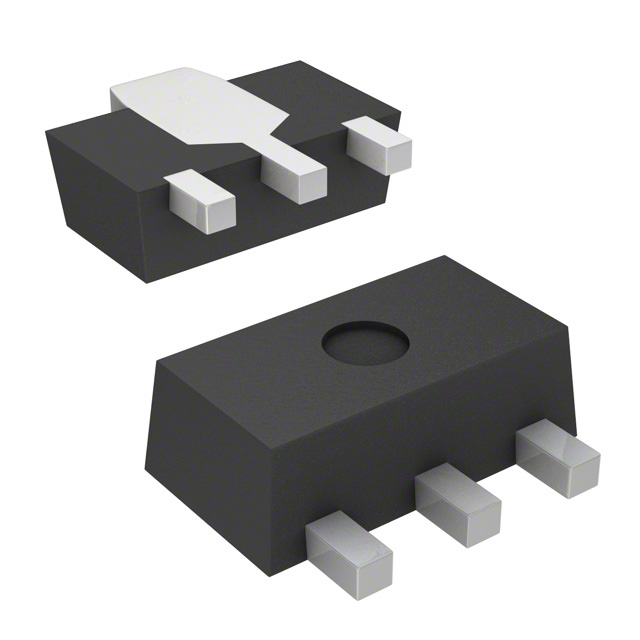

RF TRANS NPN 12V 6.5GHZ SOT89Manufacturer: CEL
Categories: Bipolar RF Transistors
Quality Control: Learn More
The CEL NE85634-T1 is a high-performance NPN bipolar RF transistor designed for demanding wireless applications. This SOT-89 packaged device offers a collector-emitter breakdown voltage of 12V and a maximum collector current of 100mA. It achieves a transition frequency of 6.5GHz and a power dissipation of up to 2W, making it suitable for RF amplification and switching in cellular infrastructure, satellite communications, and test and measurement equipment. Notable specifications include a typical noise figure of 1.4dB at 1GHz and a minimum DC current gain (hFE) of 50 at 20mA and 10V. The transistor operates at an elevated temperature of 150°C (TJ) and is supplied in tape and reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Gain | - |
| Power - Max | 2W |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 20mA, 10V |
| Frequency - Transition | 6.5GHz |
| Noise Figure (dB Typ @ f) | 1.4dB @ 1GHz |
| Supplier Device Package | SOT-89 |
