CAT4016HV6G
IC LED DRVR LIN PWM 80MA 24TQFNManufacturer: Catalyst Semiconductor Inc.
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 16 Output Linear Shift Register PWM Dimming 80mA 24-TQFN (4x4)
Additional Information
Series: CAT4016RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

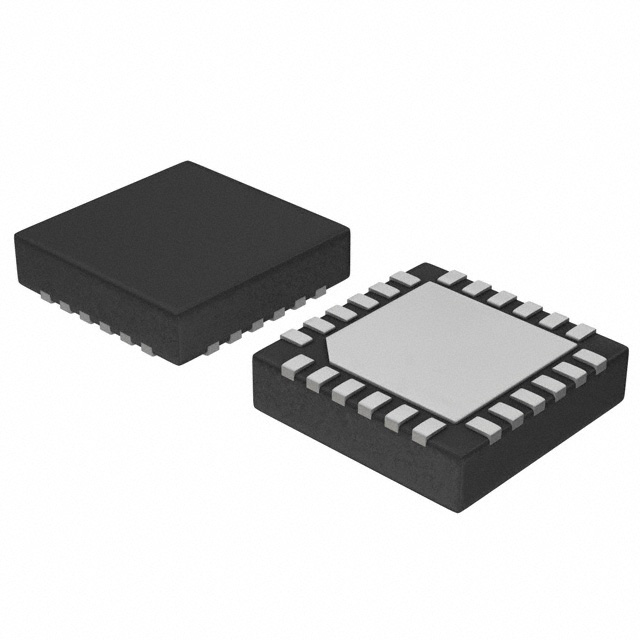

| Package / Case | 24-WFQFN Exposed Pad |
| Voltage - Output | 5.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 25MHz |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Signage |
| Current - Output / Channel | 80mA |
| Internal Switch(s) | Yes |
| Topology | Shift Register |
| Supplier Device Package | 24-TQFN (4x4) |
| Dimming | PWM |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
