FSH-31
SENSOR LEVEL SWITCHManufacturer: Carlo Gavazzi Inc.
Categories: Float, Level Sensors
Quality Control: Learn More

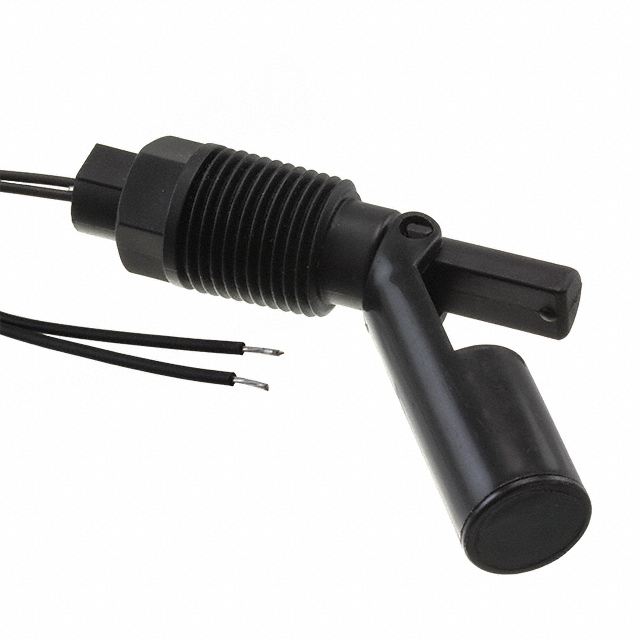

Carlo Gavazzi Inc. FS Series FSH-31 liquid level sensor switch. This panel mount unit features an M16x2 thread for secure installation. The unit offers SPST-NC/NO output configurations and is rated for up to 200VDC or 240VAC with a current capacity of 500 mA. Constructed with a polypropylene housing and prism, it is designed for reliable operation with liquids having a minimum specific gravity of 0.75. The operating temperature range is from -20°C to 80°C. This component is suitable for applications in industrial automation and fluid management systems.
Additional Information
Series: FSRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Output Type | Switch |
| Voltage Rating | 200VDC, 240VAC |
| Mounting Type | Panel Mount, M16x2 Thread |
| Type | Liquid |
| Operating Temperature | -20°C ~ 80°C |
| Output Configuration | SPST-NC/NO |
| Minimum Liquid Specific Gravity | 0.75 |
| Switch Actuation Level | - |
| Material - Housing & Prism | Polypropylene (PP) |
| Current | 500 mA |
