B12B15505AEDA0GE
THERMOSTAT 155DEG C SPST-NO RADManufacturer: Cantherm
Categories: Mechanical
Quality Control: Learn More

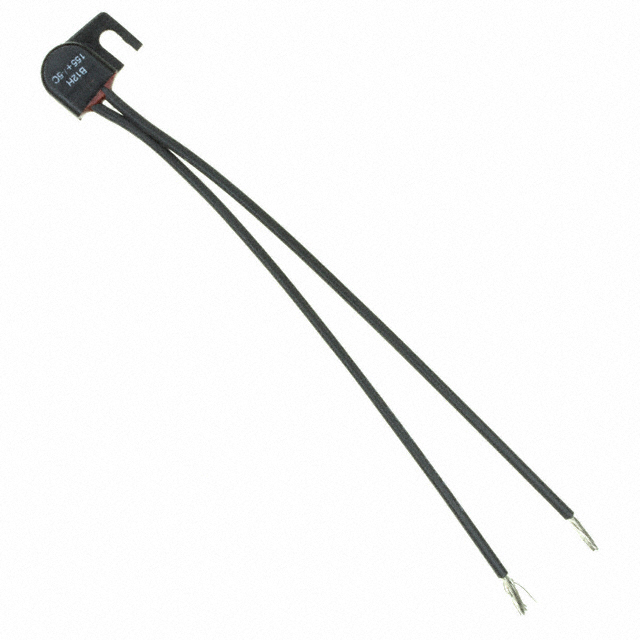

The Cantherm B12 series thermostat, part number B12B15505AEDA0GE, is a normally open, single-pole, single-throw (SPST-NO) thermal switch. This component features a precise switching temperature of 155°C (311°F) with a tolerance of ±5°C (±9°F) and a reset temperature of 125°C (257°F). It is rated for 1.6A at 250VAC and is designed for through-hole mounting with radial wire leads extending 4 inches (101.6mm). The B12 series is engineered for applications requiring reliable temperature control and protection, commonly found in industrial automation, appliance control, and automotive systems. The unit offers a switching cycle rating of 5,000 cycles and is supplied in bulk packaging.
Additional Information
Series: B12RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±9°F (±5°C) |
| Packaging | Bag |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Termination Style | Wire Leads - 4"" (101.6mm) |
| Switching Temperature | 311°F (155°C) |
| Reset Temperature | 257°F (125°C) |
| Current Rating - AC | 1.6A (250V) |
| Current Rating - DC | - |
| Switching Cycles | 5K |
