B12B15005AEDA0GE
THERMOSTAT 150DEG C SPST-NO RADManufacturer: Cantherm
Categories: Mechanical
Quality Control: Learn More

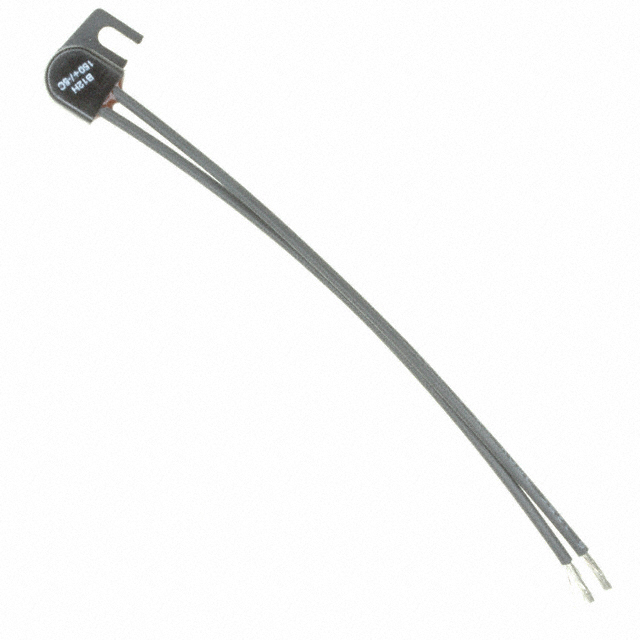

The Cantherm B12 series thermostat, part number B12B15005AEDA0GE, is a thermally actuated switch designed for precise temperature control applications. This SPST-NO (Single Pole, Single Throw - Normally Open) device features a switching temperature of 150°C (302°F) with a tolerance of ±5°C. Its radial package with 4-inch wire leads facilitates easy through-hole mounting. Rated for 1.6A at 250VAC, this component is suitable for use in industrial automation, appliance control, and automotive systems where reliable thermal management is critical. The B12 series offers a switching cycle rating of 5,000 and a reset temperature of 120°C (248°F).
Additional Information
Series: B12RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±9°F (±5°C) |
| Packaging | Bag |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Termination Style | Wire Leads - 4"" (101.6mm) |
| Switching Temperature | 302°F (150°C) |
| Reset Temperature | 248°F (120°C) |
| Current Rating - AC | 1.6A (250V) |
| Current Rating - DC | - |
| Switching Cycles | 5K |
