B12A15005AEDA0GE
THERMOSTAT 150DEG C SPST-NC RADManufacturer: Cantherm
Categories: Mechanical
Quality Control: Learn More

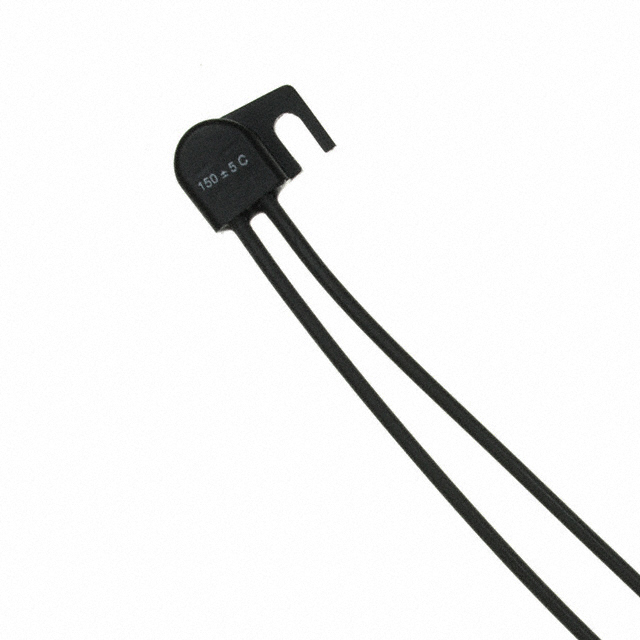

Cantherm B12 Series thermostat, part number B12A15005AEDA0GE, is a single-pole, single-throw normally closed (SPST-NC) thermal switch. It features a switching temperature of 150°C (302°F) with a tolerance of ±5°C. The component has a reset temperature of 120°C (248°F) and is rated for 6A at 250VAC. This through-hole mount device utilizes radial wire leads, 4 inches (101.6mm) in length, for termination. Designed for applications requiring reliable temperature control and over-temperature protection, this thermostat is suitable for use in industrial control, appliance, and automotive sectors. The B12 series offers a switching cycle rating of 1,000.
Additional Information
Series: B12RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±9°F (±5°C) |
| Packaging | Bag |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Circuit | SPST-NC |
| Termination Style | Wire Leads - 4"" (101.6mm) |
| Switching Temperature | 302°F (150°C) |
| Reset Temperature | 248°F (120°C) |
| Current Rating - AC | 6A (250V) |
| Current Rating - DC | - |
| Switching Cycles | 1k |
