B12A11005AEDA0GE
THERMOSTAT 110DEG C SPST-NC RADManufacturer: Cantherm
Categories: Mechanical
Quality Control: Learn More
Thermostat 230°F (110°C) SPST-NC Radial Wire Leads - 4"" (101.6mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 4 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±9°F (±5°C) |
| Packaging | Bag |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Circuit | SPST-NC |
| Termination Style | Wire Leads - 4"" (101.6mm) |
| Switching Temperature | 230°F (110°C) |
| Reset Temperature | 176°F (80°C) |
| Current Rating - AC | 6A (250V) |
| Current Rating - DC | - |
| Switching Cycles | 1k |
Request a Quote
Clients Also Buy
F20A12505IZA0060
THERMOSTAT 125DEG C SPST-NC 2SIP

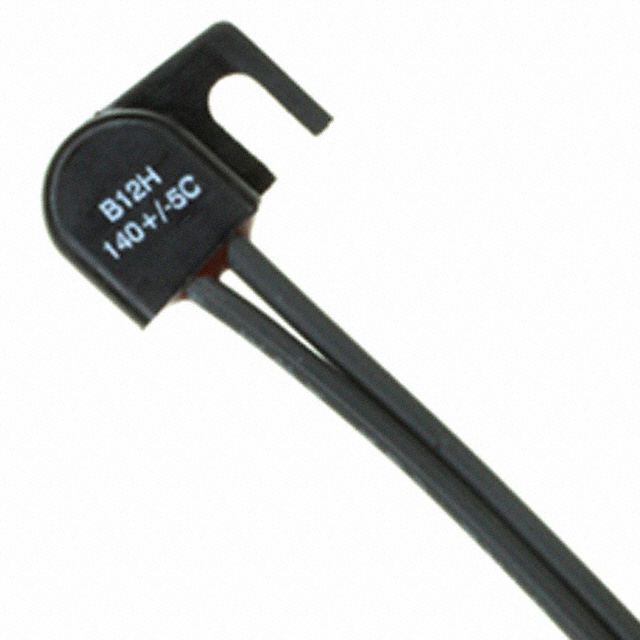

B12B14005AEDA0GE
