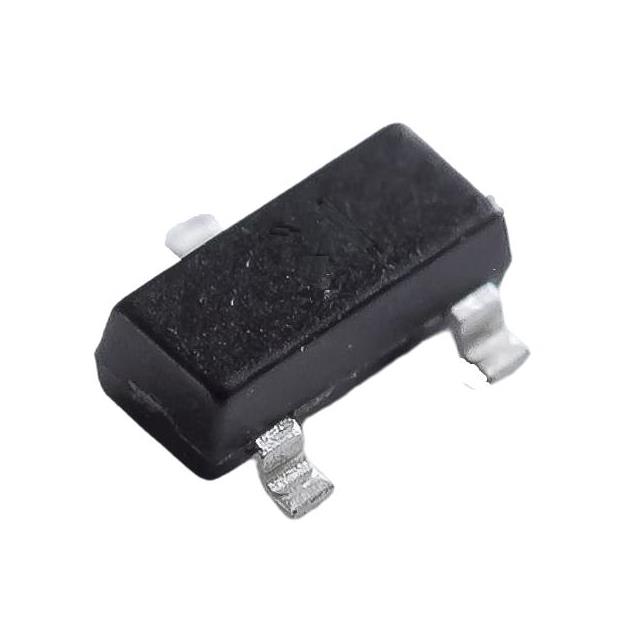

MS40N05
N-Channel MOSFET,40V,5A,SOT-23Manufacturer: Bruckewell
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 5A (Ta) 1.25W (Ta) Surface Mount SOT-23
Additional Information
Series: SOT-23RoHS Status: RoHS CompliantManufacturer Lead Time: Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 593 pF @ 15 V |
