ACMD-7612-BLKG

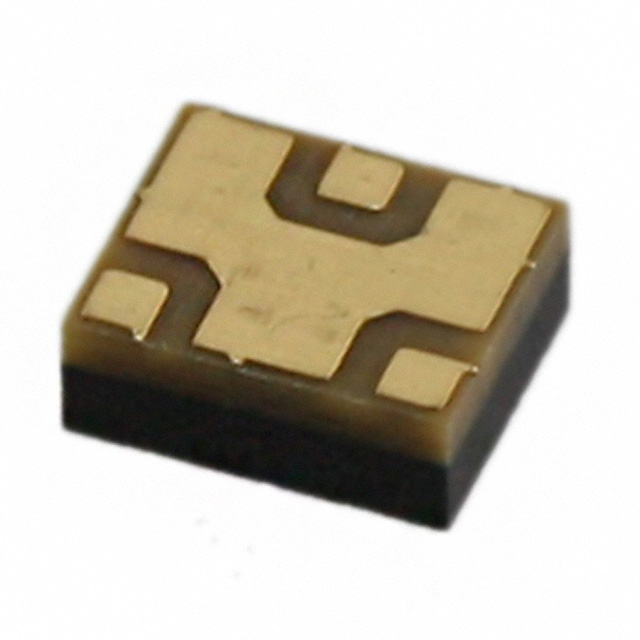

RF DUPLEXER 1.95GHZ/2.14GHZ 3CSPManufacturer: Broadcom Limited
Categories: RF Multiplexers
Quality Control: Learn More
Broadcom Limited ACMD-7612-BLKG is a 3-CSP packaged RF Duplexer designed for surface mount applications. This component operates across two distinct frequency bands: 1.92GHz to 1.98GHz for the low band and 2.11GHz to 2.17GHz for the high band. It exhibits a minimum attenuation of 53.00dB in the low band and 41.00dB in the high band. Return loss specifications are 20.0dB for the low band and 16.0dB for the high band. This duplexer is suitable for use in wireless communication systems, including cellular infrastructure and mobile devices.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 3-CSP |
| Mounting Type | Surface Mount |
| Type | Duplexer |
| Frequency Bands (Low / High) | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz |
| Low Band Attenuation (min / max dB) | 53.00dB / - |
| High Band Attenuation (min / max dB) | 41.00dB / - |
| Return Loss (Low Band / High Band) | 20.0dB / 16.0dB |
