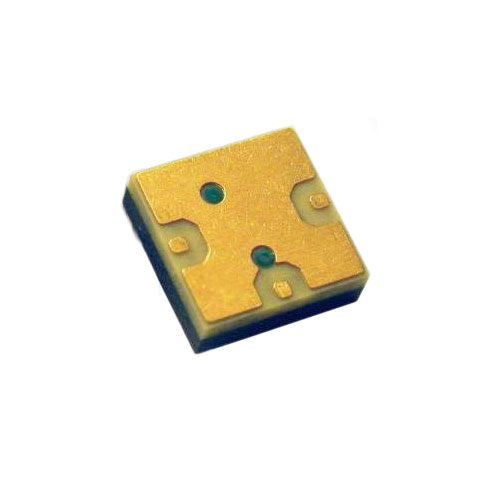

ACMD-7402-BLK
RF DUPLEXER 1.875/1.96GHZ 3CSPManufacturer: Broadcom Limited
Categories: RF Multiplexers
Quality Control: Learn More
Broadcom Limited ACMD-7402-BLK is a surface-mount RF duplexer designed for wireless communication systems. This 3-CSP packaged component operates across two distinct frequency bands: 1.85GHz to 1.9GHz for one path and 1.93GHz to 1.99GHz for the other. It provides a minimum of 43dB attenuation in the high band and 52dB in the low band. Return loss specifications are 20.0dB for the low band and 17.0dB for the high band. This duplexer is suitable for applications in mobile infrastructure and cellular handset markets.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 3-CSP |
| Mounting Type | Surface Mount |
| Type | Duplexer |
| Frequency Bands (Low / High) | 1.85GHz ~ 1.9GHz / 1.93GHz ~ 1.99GHz |
| Low Band Attenuation (min / max dB) | 52.00dB / - |
| High Band Attenuation (min / max dB) | 43.00dB / - |
| Return Loss (Low Band / High Band) | 20.0dB / 17.0dB |
