ATF-541M4-BLK
RF MOSFET E-PHEMT 3V MINIPAKManufacturer: Broadcom Limited
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Broadcom Limited's ATF-541M4-BLK is an E-pHEMT RF MOSFET designed for high-frequency applications. This component offers a typical gain of 17.5dB at 2GHz, with a noise figure of 0.5dB, making it suitable for demanding RF front-end designs. The device operates with a rated voltage of 5V and a test voltage of 3V, drawing 60mA during testing. Its output power capability reaches 21.4dBm. The ATF-541M4-BLK is provided in a MiniPak 1412 (0505 metric) package, suitable for bulk handling in high-volume manufacturing. This RF MOSFET finds application in wireless infrastructure, satellite communications, and general RF power amplification.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

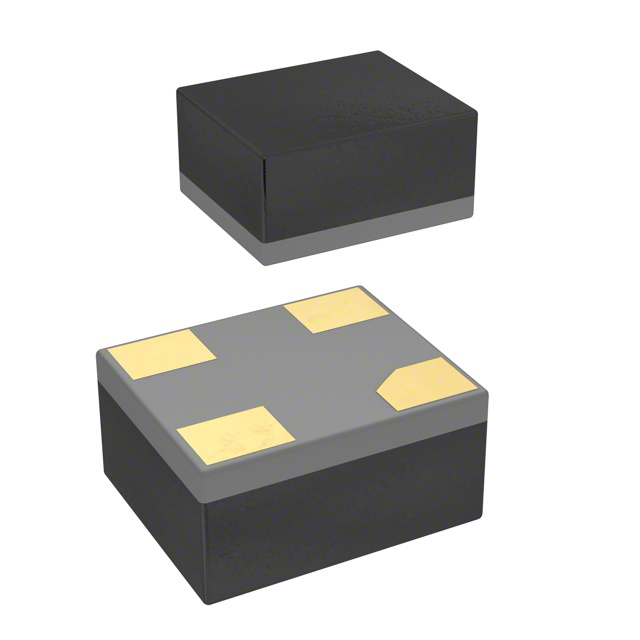

| Package / Case | 0505 (1412 Metric) |
| Current Rating (Amps) | 120mA |
| Frequency | 2GHz |
| Power - Output | 21.4dBm |
| Gain | 17.5dB |
| Technology | E-pHEMT |
| Noise Figure | 0.5dB |
| Supplier Device Package | MiniPak 1412 |
| Voltage - Rated | 5 V |
| Voltage - Test | 3 V |
| Current - Test | 60 mA |
