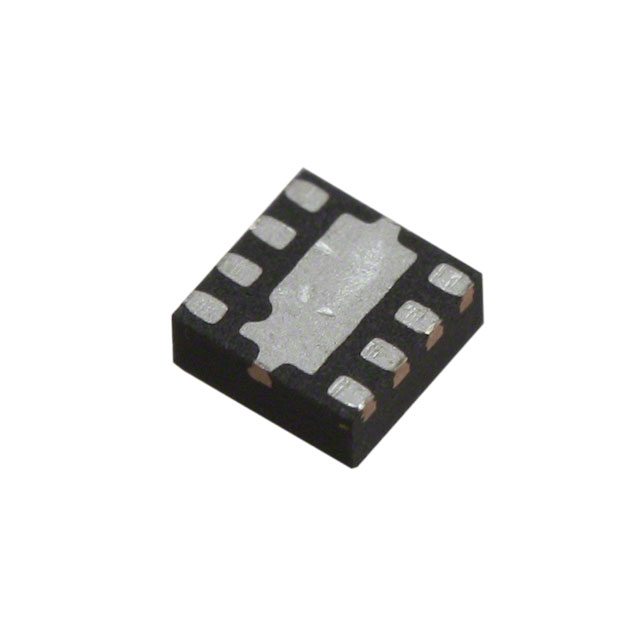

ATF-531P8-TR1
RF MOSFET E-PHEMT 4V 8LPCCManufacturer: Broadcom Limited
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Broadcom Limited ATF-531P8-TR1 is an E-pHEMT RF MOSFET designed for high-frequency applications. This component offers a typical gain of 20dB and an output power of 24.5dBm at 2GHz. It operates with a test voltage of 4V and a rated voltage of 7V, drawing a test current of 135mA. The ATF-531P8-TR1 features a low noise figure of 0.6dB, making it suitable for demanding signal amplification stages. Supplied in an 8-LPCC (2x2) package on tape and reel, this device finds application in wireless infrastructure and broadband communication systems. Its performance characteristics align with the requirements for advanced RF front-end designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Current Rating (Amps) | 300mA |
| Frequency | 2GHz |
| Power - Output | 24.5dBm |
| Gain | 20dB |
| Technology | E-pHEMT |
| Noise Figure | 0.6dB |
| Supplier Device Package | 8-LPCC (2x2) |
| Voltage - Rated | 7 V |
| Voltage - Test | 4 V |
| Current - Test | 135 mA |
