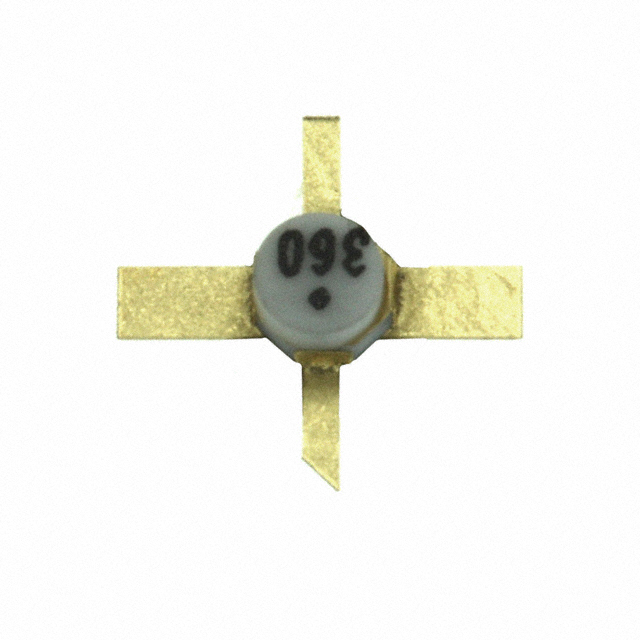

ATF-36077-STR
RF MOSFET PHEMT FET 1.5V 77SMDManufacturer: Broadcom Limited
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Broadcom Limited ATF-36077-STR is a pHEMT FET designed for high-frequency RF applications. This electronic component operates with a test voltage of 1.5V and a rated voltage of 3V, delivering a typical output power of 5dBm at 12GHz. The device exhibits a gain of 12dB and a noise figure of 0.5dB, crucial parameters for optimal RF signal processing. It is supplied in a 77-SMD package, specifically a 4-SMD (77 Pack) configuration, suitable for demanding RF circuit designs. The ATF-36077-STR finds application in wireless communication infrastructure, satellite communications, and test and measurement equipment where high performance and reliability are paramount. The component is rated for a current of 45mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (77 Pack) |
| Current Rating (Amps) | 45mA |
| Frequency | 12GHz |
| Power - Output | 5dBm |
| Gain | 12dB |
| Technology | pHEMT FET |
| Noise Figure | 0.5dB |
| Supplier Device Package | 77 |
| Voltage - Rated | 3 V |
| Voltage - Test | 1.5 V |
| Current - Test | 10 mA |
