HSMP-389Y-TR1G
RF DIODE PIN 100V SOD323Manufacturer: Broadcom Limited
Categories: RF Diodes
Quality Control: Learn More

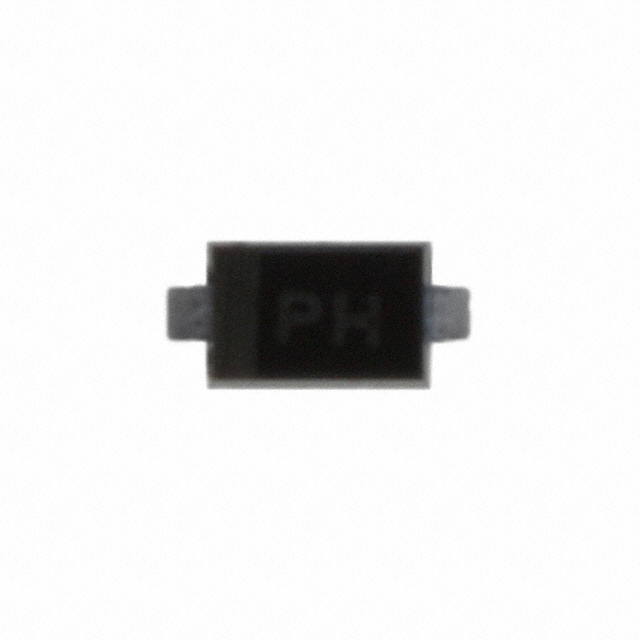

Broadcom Limited HSMP-389Y-TR1G is a single PIN RF diode designed for high-frequency applications. This component features a maximum reverse voltage of 100V and can handle a forward current of up to 1A. Its low capacitance, specified at 0.3pF at 5V and 1MHz, makes it suitable for RF switching and attenuation circuits. The diode exhibits a low resistance of 2.5 Ohms at 5mA and 100MHz, ensuring efficient signal transmission. Packaged in a compact SOD-323 (SC-79) surface-mount package, it is supplied on a tape and reel for automated assembly. The HSMP-389Y-TR1G operates within an extended temperature range of -55°C to 150°C, making it reliable for use in telecommunications, radar systems, and wireless infrastructure.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Diode Type | PIN - Single |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 0.3pF @ 5V, 1MHz |
| Resistance @ If, F | 2.5Ohm @ 5mA, 100MHz |
| Voltage - Peak Reverse (Max) | 100V |
| Supplier Device Package | SOD-323 |
| Current - Max | 1 A |
