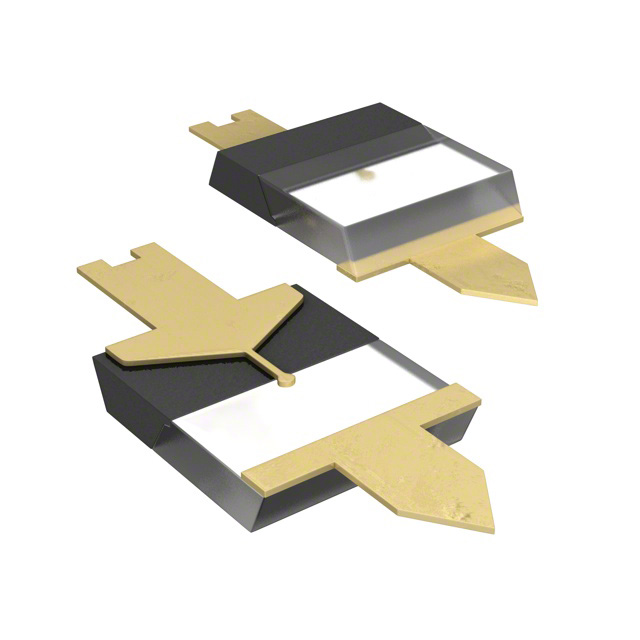

HPND-4028
IC RF PIN DIODE BEAM LEAD SWManufacturer: Broadcom Limited
Categories: RF Diodes
Quality Control: Learn More
Broadcom Limited HPND-4028 is a single PIN RF diode designed for high-frequency switching applications. This component offers a reverse voltage rating of 60V and a maximum power dissipation of 250mW. The device features a low capacitance of 0.045pF at 30V and 1MHz, crucial for minimizing signal loss in RF circuits. Operating across a wide temperature range from -65°C to 150°C, the HPND-4028 is suitable for demanding environments. Its 2-SMD, Flat Leads package, designated as supplier device package 83, ensures compatibility with surface-mount manufacturing processes. This RF diode finds utility in various telecommunications and radar systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, Flat Leads |
| Diode Type | PIN - Single |
| Operating Temperature | -65°C ~ 150°C |
| Capacitance @ Vr, F | 0.045pF @ 30V, 1MHz |
| Resistance @ If, F | - |
| Voltage - Peak Reverse (Max) | 60V |
| Supplier Device Package | 83 |
| Power Dissipation (Max) | 250 mW |
