HMPS-2822-BLK
RF DIODE SCHOTTKY 15V MINIPAKManufacturer: Broadcom Limited
Categories: RF Diodes
Quality Control: Learn More

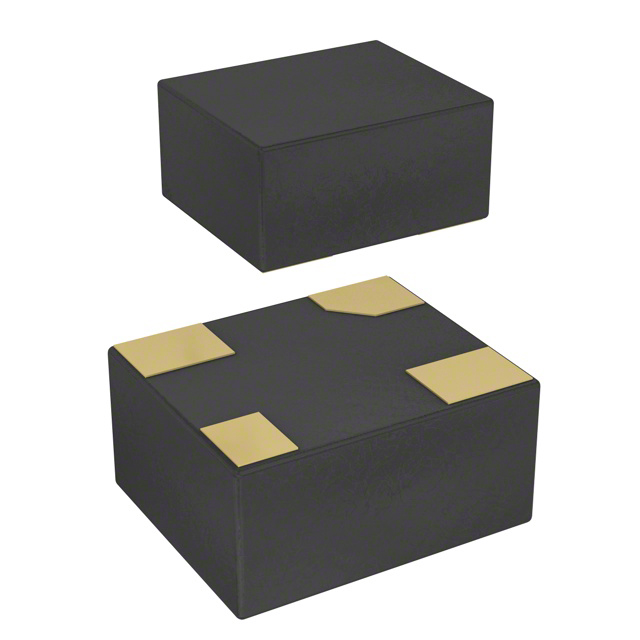

Broadcom Limited HMPS-2822-BLK is a Schottky RF diode featuring two independent diodes in a MiniPak 1412 (4-UQFN) package. This component offers a 15V reverse voltage rating, a maximum forward current of 1A, and a low capacitance of 1pF at 0V and 1MHz. With a forward resistance of 12 Ohms at 5mA and 1MHz, the HMPS-2822-BLK is designed for high-frequency applications. The operating junction temperature can reach up to 150°C. This device is suitable for use in telecommunications infrastructure, wireless connectivity, and power management systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-UQFN |
| Diode Type | Schottky - 2 Independent |
| Operating Temperature | 150°C (TJ) |
| Capacitance @ Vr, F | 1pF @ 0V, 1MHz |
| Resistance @ If, F | 12Ohm @ 5mA, 1MHz |
| Voltage - Peak Reverse (Max) | 15V |
| Supplier Device Package | MiniPak 1412 |
| Current - Max | 1 A |
