VMMK-2203-TR2G
IC AMP WIMAX 900MHZ-11GHZ 0402Manufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More

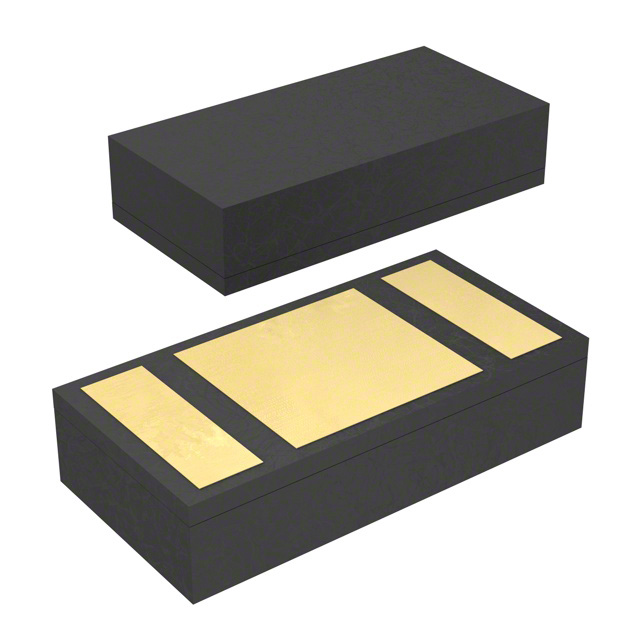

Broadcom Limited VMMK-2203-TR2G is a surface-mount RF amplifier IC designed for WiMax and WLAN applications. Operating across a broad frequency range of 900MHz to 11GHz, this component delivers a typical gain of 16.5dB at a test frequency of 6GHz. The VMMK-2203-TR2G features a noise figure of 2dB and a P1dB output power of 5dBm, making it suitable for demanding wireless infrastructure and mobile communication systems. Supplied in a compact 0402 (1005 Metric) package, it is delivered on tape and reel for automated assembly. The device operates from a 5V supply.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Frequency | 900MHz ~ 11GHz |
| RF Type | WiMax, WLAN |
| Voltage - Supply | 5V |
| Gain | 16.5dB |
| Current - Supply | - |
| Noise Figure | 2dB |
| P1dB | 5dBm |
| Test Frequency | 6GHz |
| Supplier Device Package | 0402 |
