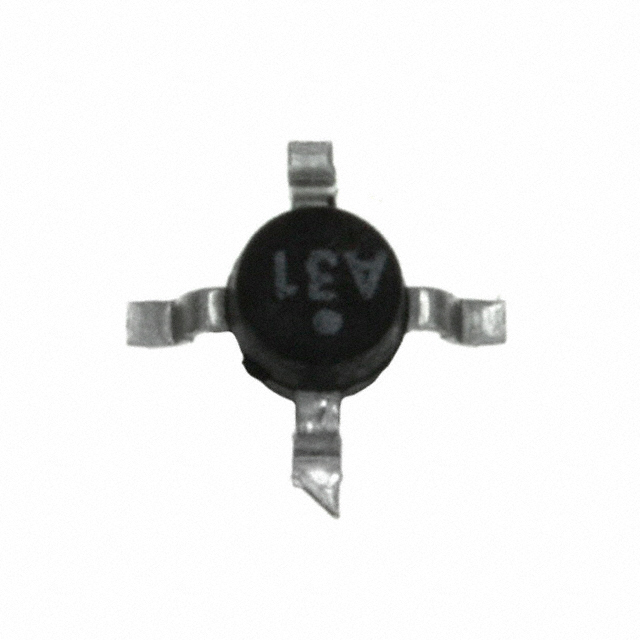

MSA-3186-BLKG
IC AMP 0HZ-6GHZ 85 MIL MICROSTIPManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited MSA-3186-BLKG is a high-performance RF amplifier designed for demanding applications. This electronic component operates across a wide frequency range of 0Hz to 6GHz, delivering a typical gain of 18.7dB at 1GHz. Engineered with a low noise figure of 3.5dB and a P1dB output power of 21dBm, the MSA-3186-BLKG is optimized for signal integrity and power efficiency. It features a surface mount design housed in an 85 mil microstipline package, suitable for automated assembly processes. The device operates from a supply voltage of 4V to 6V with a typical current consumption of 60mA. This amplifier is commonly utilized in wireless communications, test and measurement equipment, and defense systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (85 mil microstipline) |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 6GHz |
| RF Type | - |
| Voltage - Supply | 4V ~ 6V |
| Gain | 18.7dB |
| Current - Supply | 60mA |
| Noise Figure | 3.5dB |
| P1dB | 21dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 85 mil microstipline |
Request a Quote
