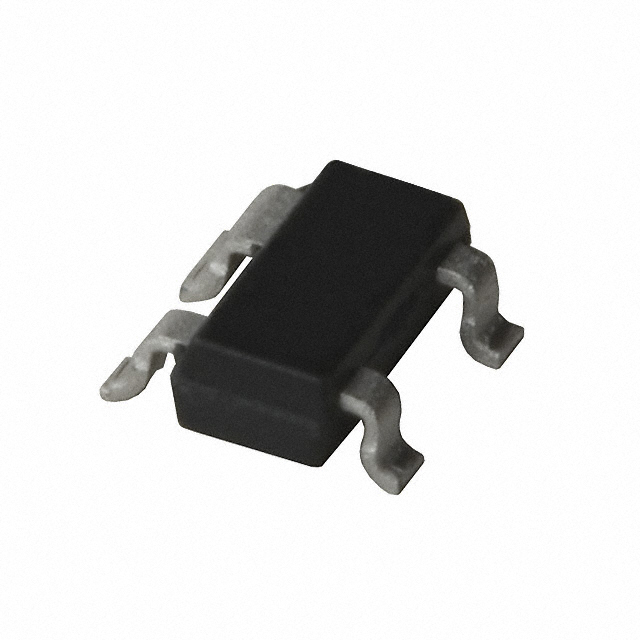

MSA-2111-TR1
IC AMP ISM 0HZ-500MHZ SOT143-4Manufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
The Broadcom Limited MSA-2111-TR1 is a high-performance RF amplifier IC designed for operation across a frequency range of 0Hz to 500MHz. This component offers a typical gain of 16dB to 17.5dB, with a noise figure of 3.3dB. It features a P1dB output power of 10dBm, making it suitable for demanding applications. The MSA-2111-TR1 operates from a supply voltage of 2.9V to 4.3V and draws a current of 40mA. It is supplied in a SOT-143-4 surface mount package, delivered on tape and reel. This RF amplifier is engineered for use in ISM, PCS, WLL, and 802.16/WiMax applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 500MHz |
| RF Type | ISM, PCS, WLL, 802.16/WiMax |
| Voltage - Supply | 2.9V ~ 4.3V |
| Gain | 16dB ~ 17.5dB |
| Current - Supply | 40mA |
| Noise Figure | 3.3dB |
| P1dB | 10dBm |
| Test Frequency | 900MHz |
| Supplier Device Package | SOT-143-4 |
Request a Quote
