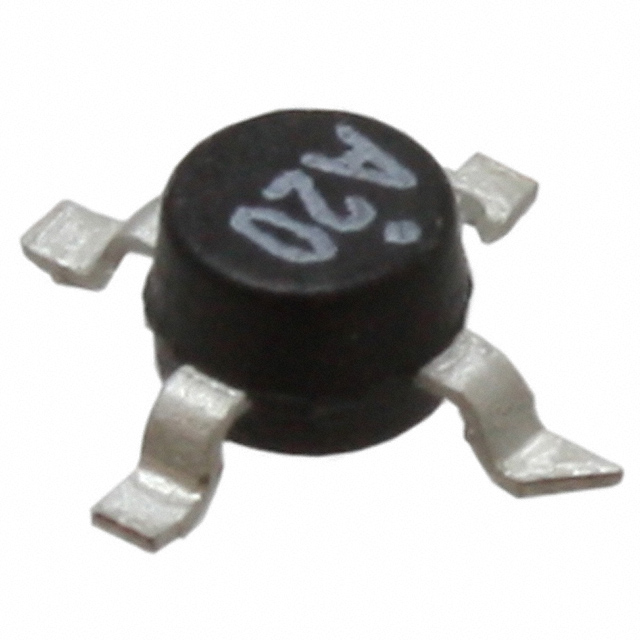

MSA-2086-BLKG
IC AMP ISM 0HZ-1GHZ 85 MIL MICROManufacturer: Broadcom Limited
Categories: RF Amplifiers
Quality Control: Learn More
Broadcom Limited's MSA-2086-BLKG is a high-performance RF amplifier IC designed for ISM band applications. This component operates across a broad frequency range from 0Hz to 1GHz, offering a typical gain of 15dB to 16.6dB at 1GHz. Featuring a low noise figure of 3.7dB and a P1dB output power of 9dBm, the MSA-2086-BLKG is well-suited for demanding RF front-end designs. It is supplied in a compact 4-SMD (85 mil microstipline) package, facilitating surface-mount assembly. The device operates with a supply voltage range of 4.5V to 6.3V and draws a current between 20mA and 40mA. This RF amplifier finds application in various sectors including wireless communications and industrial control systems. The component is available in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD (85 mil microstipline) |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 1GHz |
| RF Type | ISM |
| Voltage - Supply | 4.5V ~ 6.3V |
| Gain | 15dB ~ 16.6dB |
| Current - Supply | 20mA ~ 40mA |
| Noise Figure | 3.7dB |
| P1dB | 9dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | 85 mil microstipline |
